X500 Driver Door Harness to Body Harness

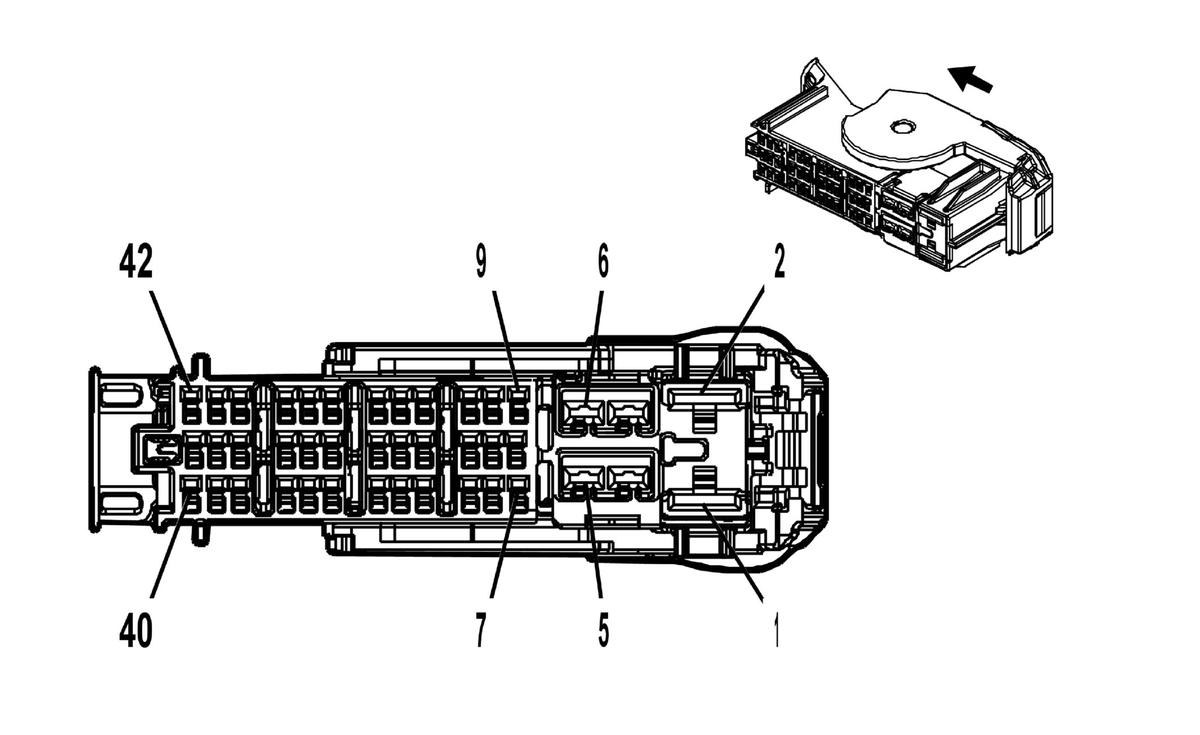

GM4650161Courtesy of GENERAL MOTORS COMPANY

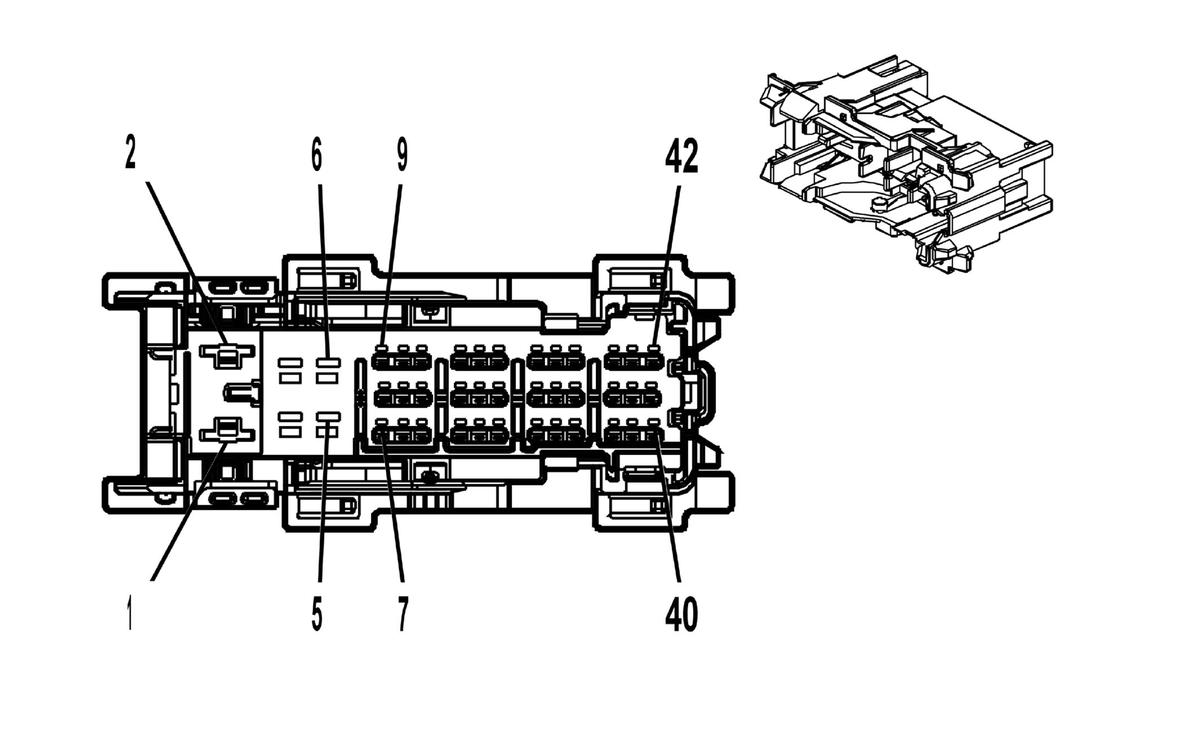

GM4650095Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 13509583
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 42-Way F 1.2 MCON, 2.8, 6.3 YESC Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13519773
  • Service Connector: 13519773
  • Description: 42-Way M 1.2 MCON, 2.8, 6.3 YESC Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-16 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-35 (VT) No Tool Required Not Required Not Required Not Required Not Required
III Not Required J-35616-42 (RD) No Tool Required Not Required Not Required Not Required Not Required
IV 13575823 J-35616-5 (PU) J-38125-11A 7114-4111-02 Yazaki 9 C A
V 13580023 J-35616-43 (RD) J-38125-11A Not Available Not Available Not Available Not Available
VI 19333325 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
VII 19352074 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
VIII 19369715 J-35616-17 (LT GN) J-38125-12A Not Available Not Available Not Available Not Available
IX 19369740 J-35616-5 (PU) J-38125-212 1326029-8 Lear 17 4 D
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 RD/BU 1842 III - Battery Positive Voltage 1 2.5 RD/BU 1842 V AEC/AXG/AEF
2 2.5 BK 750 III - Ground 2 2.5 BK 750 V -
3 2
2		 BN/BU
BN/BU		 118
118		 II
II		 UQA
UQS		 Left Front Speaker Signal (-) 1
Left Front Speaker Signal (-) 1		 3 3 BN/BU 118 IX UQS
4 1 BU/PU 1874 II - Left Front Speaker Control (+) 2 4 1 BU/PU 1874 IV (UQS)/(UQA+UQS)
5 2 BU 201 II - Left Front Speaker Control (+) 1 5 3 BU 201 IX -
6 1 GY/BK 1974 II - Left Front Speaker (-) 2 Low Reference 6 1 GY/BK 1974 IV (UQS)/(UQA+UQS)
7 0.35 YE/PU 3397 I DR5 Passenger Mirror Motor Up (+) Down (-) Control 7 0.35 YE/PU 3397 VI DR5
8 0.5 RD/PU 1940 I AXG Battery Positive Voltage 8 0.5 RD/PU 1940 VII AXG
9 0.35 GY 157 I - Interior Lamp Control 9 0.35 GY 157 VI -
10 0.35 WH/YE 7557 I - LED Ambient Lighting Control 1 10 0.35 WH/YE 7557 VI -
11 0.35 YE 6817 I - LED Backlight Dimming Control 11 0.35 YE 6817 VI -
12 0.35 YE/WH 1690 I DRZ/DD8 Automatic Day/Night Mirror Signal 12 0.35 YE/WH 1690 VI -
13 0.35 BK/YE 1691 I DRZ/DD8 Automatic Day/Night Mirror Low Reference 13 0.35 BK/YE 1691 VI -
14 0.35 BN/RD 2063 I UVH 6V Reference 14 0.35 BN/RD 2063 VI UVH
15 - - - - - Not Occupied 15 - - - - -
16 0.5 OG/GN 2132 I - Left Front Side Impact Sensing Module Signal 16 0.5 OG/GN 2132 VII -
17 0.5 BK/OG 6628 I - Left Front Side Impact Sensing Module Low Reference 17 0.5 BK/OG 6628 VII -
18 0.35 GN/YE 6134 I AXG Local Interconnect Network Serial Data Bus 3 18 0.35 GN/YE 6134 VI AXG
19 0.35 GY/GN 5996 I HD7 Driver Outside Rear View Mirror Puddle Lamp Control 19 0.35 GY/GN 5996 VI HD7
20 0.35 GN/WH 3570 I - Driver Door Handle Switch Signal 20 0.35 GN/WH 3570 VI -
21 0.35 PU 3560 I - Passive Entry Driver Door Antenna Signal Hi 21 0.35 PU 3560 VI -
22 0.35 PU/GY 3561 I - Passive Entry Driver Door Antenna Signal Lo 22 0.35 PU/GY 3561 VI ATH/ATS
23 0.5 BU/WH 1314 I DNP Left Front Turn Signal Lamp Control 23 0.5 BU/WH 1314 VII DNP
24 0.5 BN/YE 2267 I - Mirror Heating Element Control 24 0.5 BN/YE 2267 VII -
25 0.35 BN/YE 780 I - Driver Door Lock Switch Lock Signal 25 0.35 BN/YE 780 VI -
26 0.35 BN/WH 781 I - Driver Door Lock Switch Unlock Signal 26 0.35 BN/WH 781 VI -
27 0.35 GY/BK 6113 I TB5 Rear Lift Gate Open/Close Switch Signal 27 0.35 GY/BK 6113 VI TB5
28 0.35 GN 6112 I TB5 Power Lift Gate On/Off Switch Signal 28 0.35 GN 6112 VI TB5
29 0.75 BN/YE 294 I - Door Lock Actuator Unlock Control 29 0.75 BN/YE 294 VIII -
30 0.75 GY 5911 I - Door Lock Actuator Lock Control 2 30 0.75 GY 5911 VIII -
31 0.35 WH/YE 3574 I BTM+EPH/N06 Driver Door Open Switch Signal 31 0.35 WH/YE 3574 VI BTM+EPH/N06
32 0.35 GN/BK 3396 I DR5 Passenger Mirror Motor Right (+) Left (-) Control 32 0.35 GN/BK 3396 VI DR5
33 0.35 GY/YE 5853 I UKC Driver Side Object Detection LED Signal 1 33 0.35 GY/YE 5853 VI UKC
34 - - - - - Not Occupied 34 - - - - -
35 0.35 BK 2150 I UVH Ground 35 0.35 BK 2150 VI UVH
36 0.35 WH 3398 I DR5 Passenger Mirror Motor Common Control 36 0.35 WH 3398 VI DR5
37 0.35 GY/YE 6972 I UVH Camera Signal 2 + 37 0.35 GY/YE 6972 VI UVH
38 0.35 WH/BU 6973 I UVH Camera Signal 2 38 0.35 WH/BU 6973 VI UVH
39 - 41 - - - - - Not Occupied 39 - 41 - - - - -
42 0.75 BN 5910 I UTT Door Double Lock Actuator Lock Control 42 0.75 BN 5910 VIII UTT
