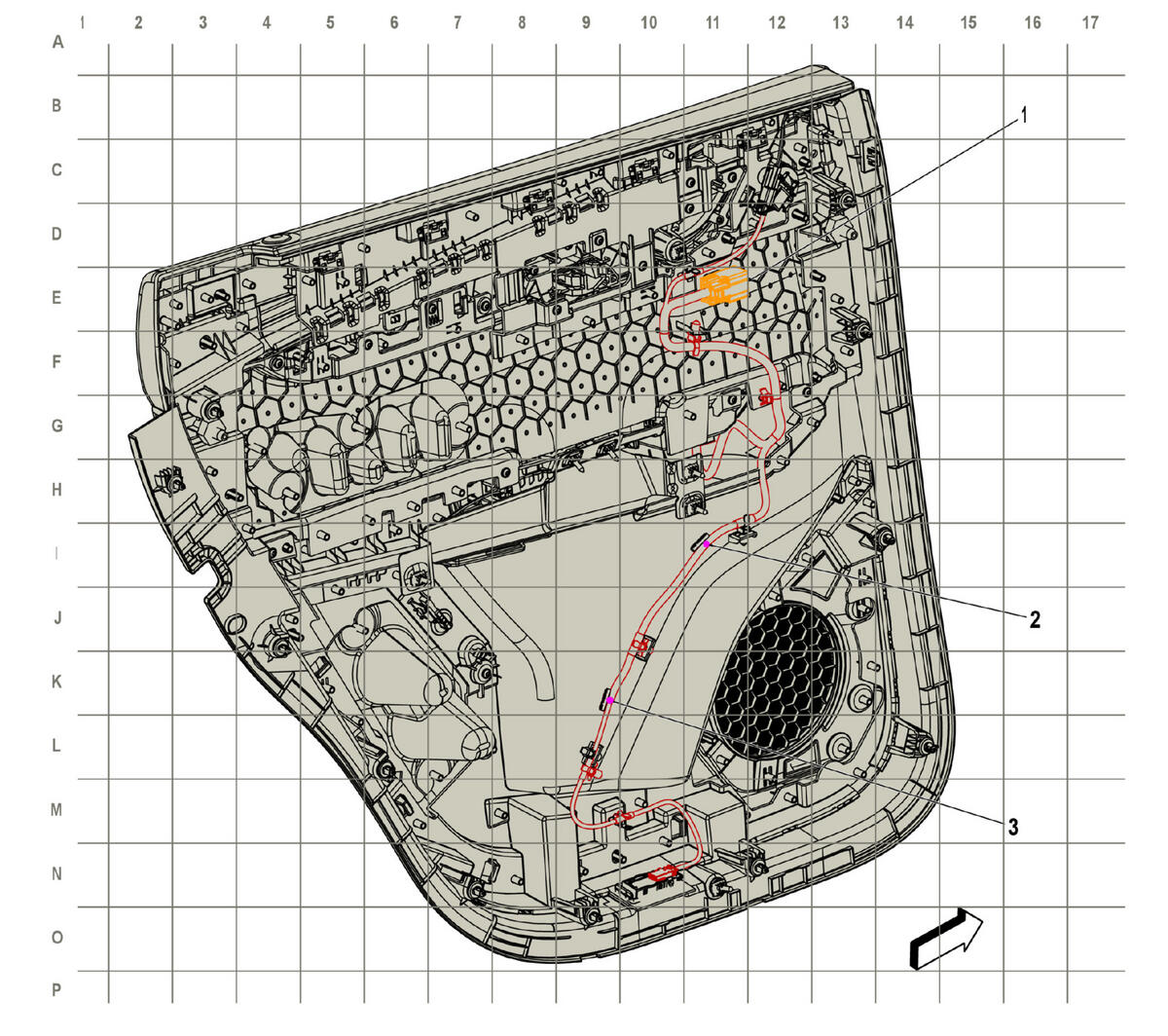

Right Rear Door Trim Harness Routing

GM4278231Courtesy of GENERAL MOTORS COMPANY
Items
1 X805 Right Rear Door Harness to Right Rear Door Trim Harness X805 Right Rear Door Harness to Rear Passenger Door Trim Harness
2 J803 Right Rear Door Trim Harness (TSP)
3 J804 Right Rear Door Trim Harness
