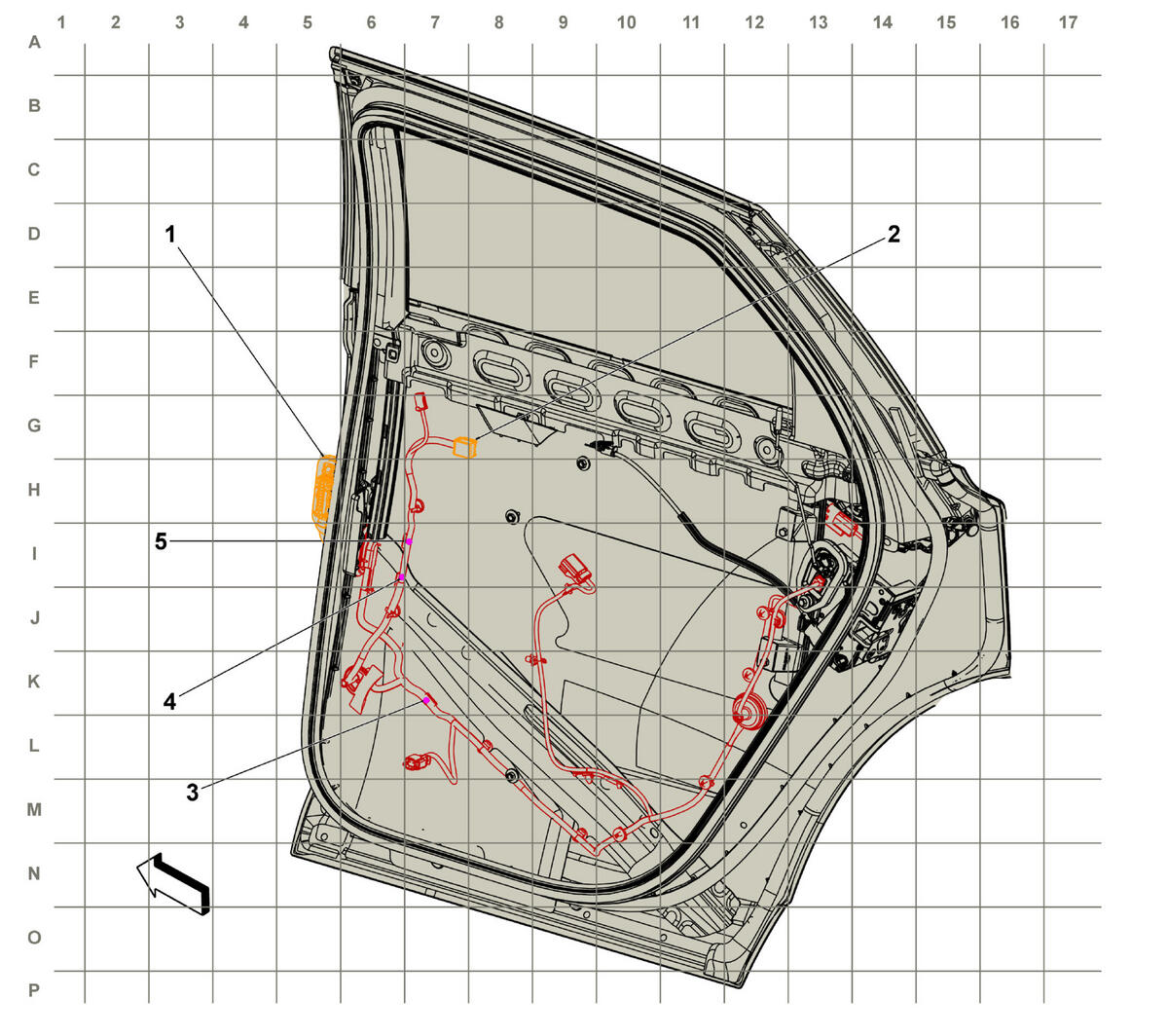

Right Rear Door Harness Routing
| Items |
|---|
| 1 X800 Right Rear Door Harness to Body Harness X800 Right Rear Door Harness to Body Harness |
| 2 X805 Right Rear Door Harness to Right Rear Door Trim Harness X805 Right Rear Door Harness to Rear Passenger Door Trim Harness |
| 3 J800 Right Rear Door Harness |
| 4 J801 Right Rear Door Harness (UQS) |
| 5 J802 Right Rear Door Harness (UQS) |
