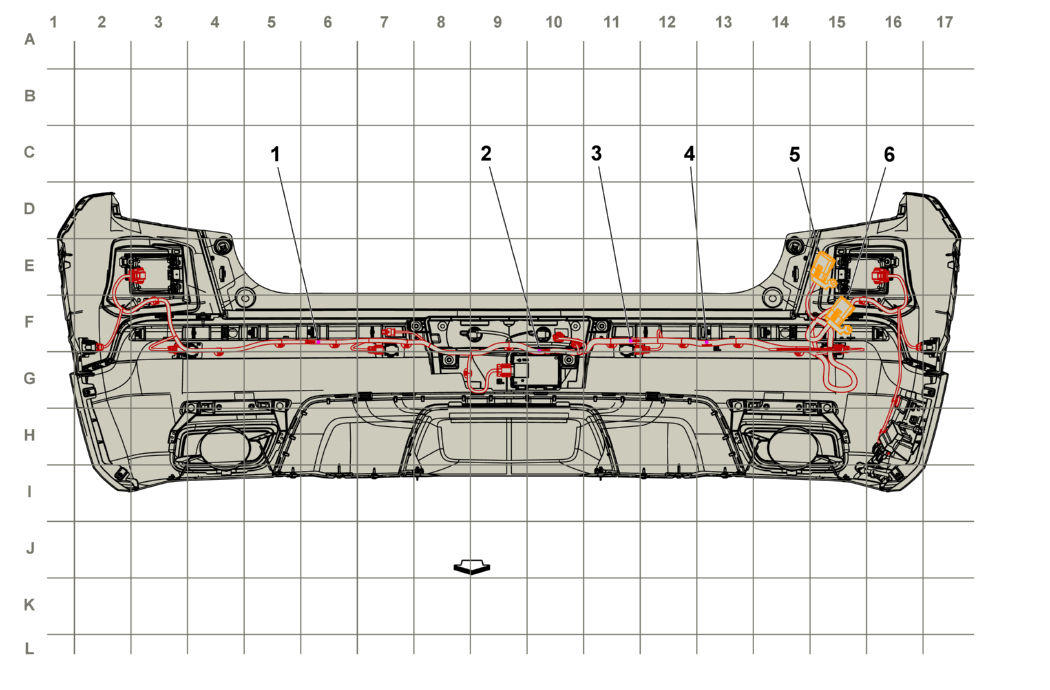

Rear Fascia Harness Routing

GM4278248Courtesy of GENERAL MOTORS COMPANY
Items
1 J412 Rear Fascia Harness
2 J411 Rear Fascia Harness
3 J410 Rear Fascia Harness
4 J409 Rear Fascia Harness
5 X400 Body Harness to Rear Fascia Harness X400 Body Harness to Rear Fascia Harness
6 X408 Body Harness to Rear Fascia Harness (UGN)
