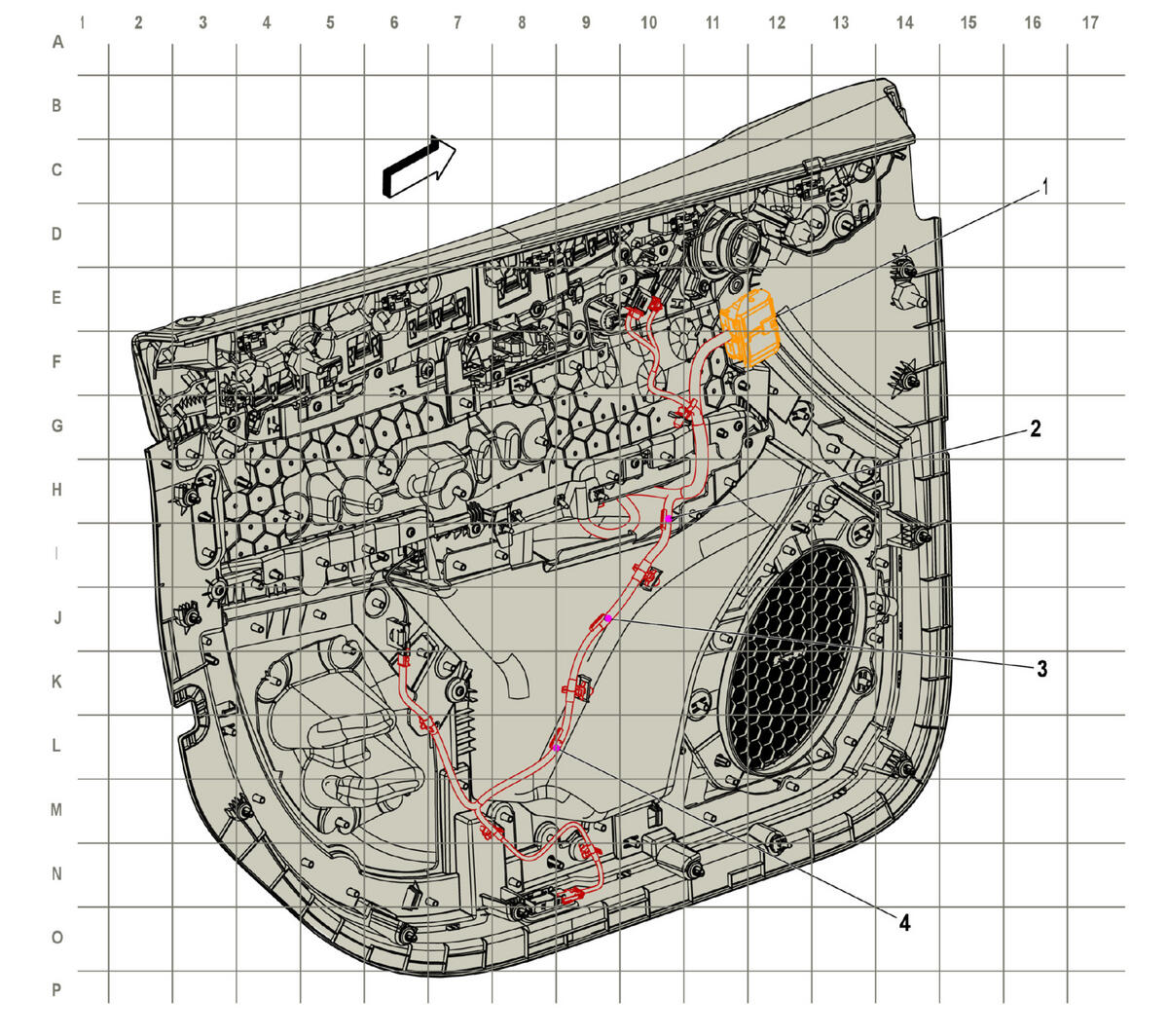

Passenger Door Trim Harness Routing

GM4278205Courtesy of GENERAL MOTORS COMPANY
Items
1 X605 Passenger Door Harness to Passenger Door Trim Harness X605 Passenger Door Harness to Passenger Door Trim Harness
2 J601 Passenger Door Trim Harness (TSP)
3 J602 Passenger Door Trim Harness
4 J603 Passenger Door Trim Harness
