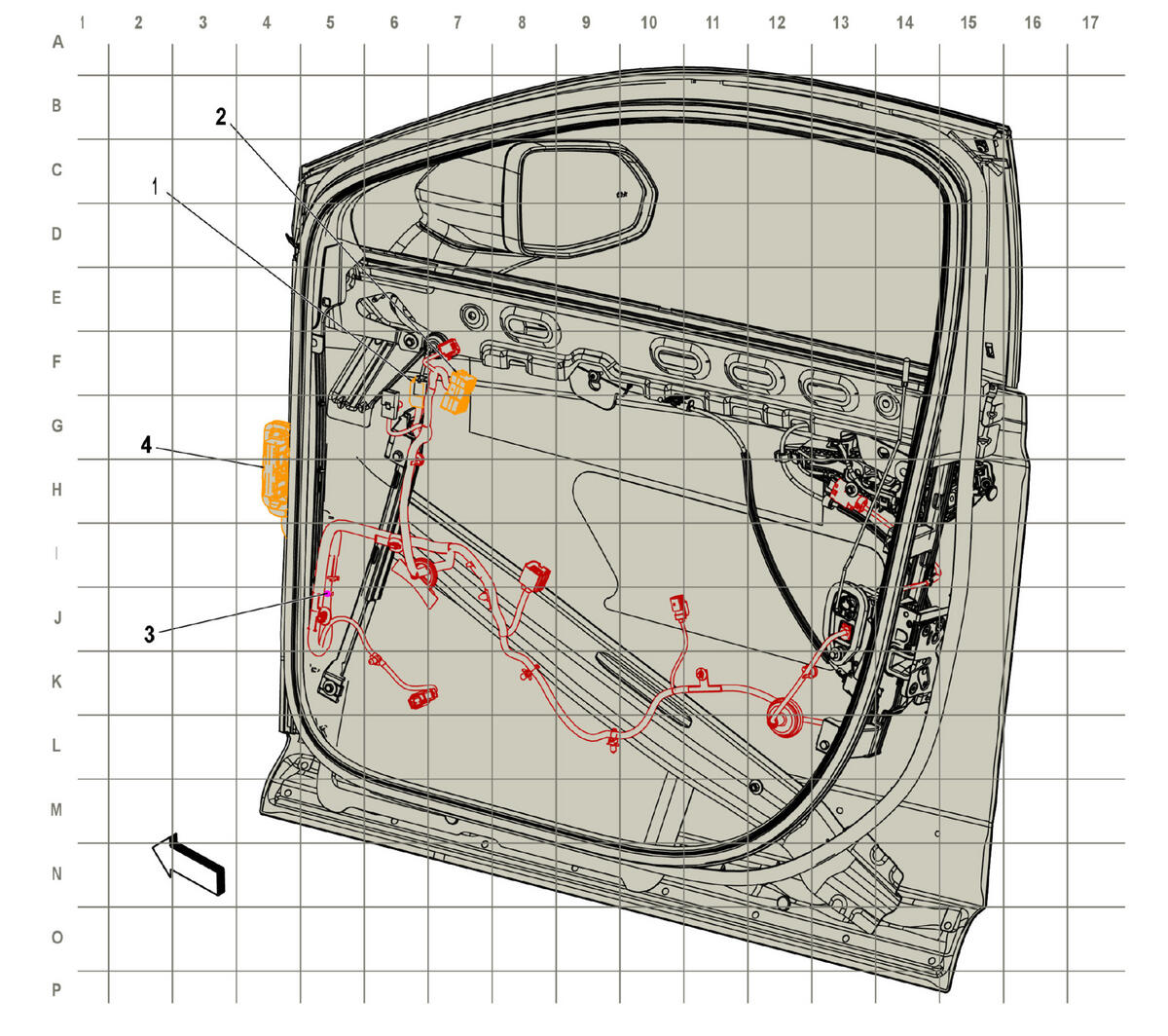

Passenger Door Harness Routing

GM4278194Courtesy of GENERAL MOTORS COMPANY
Items
1 X605 Passenger Door Harness to Passenger Door Trim Harness X605 Passenger Door Harness to Passenger Door Trim Harness
2 X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness
3 X611 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness (UVH) X611 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness (UVH)
4 X600 Passenger Door Harness to Body Harness
5 J600 Passenger Door Harness
