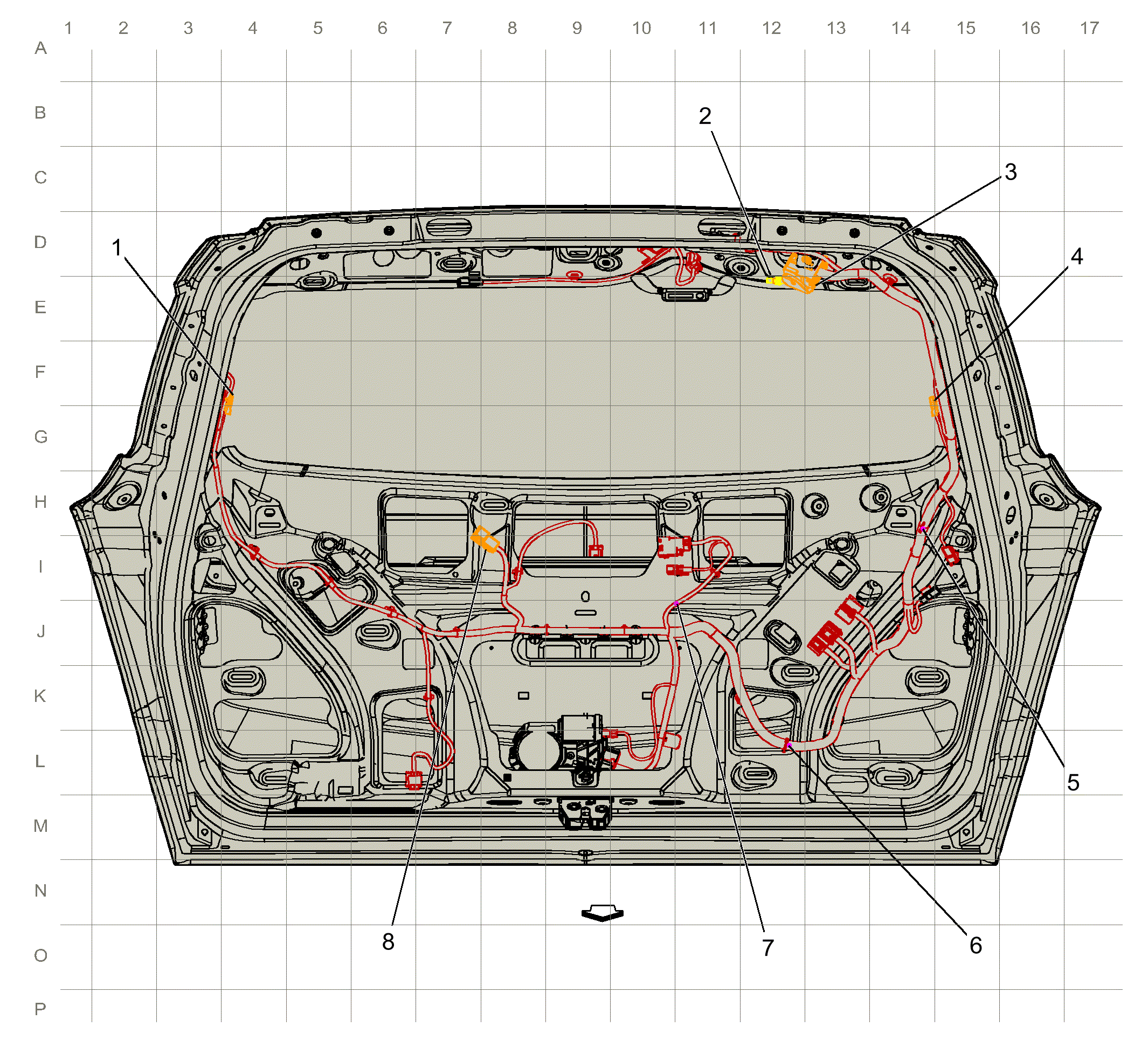

| 1 X902 Right Liftgate Object Sensor Jumper Harness to Liftgate Harness X902 Right Liftgate Object Sensor Jumper Harness to Liftgate Harness |
| 2 X906 Body Harness to Liftgate Harness (DRZ) |
| 3 X900 Body Harness to Liftgate Harness X900 Body Harness to Liftgate Harness () |
| 4 X904 Liftgate Harness to Left Liftgate Object Sensor Jumper Harness X904 Left Liftgate Object Sensor Jumper Harness to Liftgate Harness |
| 5 J900 Liftgate Harness |
| 6 J901 Liftgate Harness |
| 7 J902 |
| 8 X901 License Lamp Harness to Liftgate Harness X901 License Lamp Harness to Liftgate Harness |
