Forward Lamp Harness Routing (2 of 2)

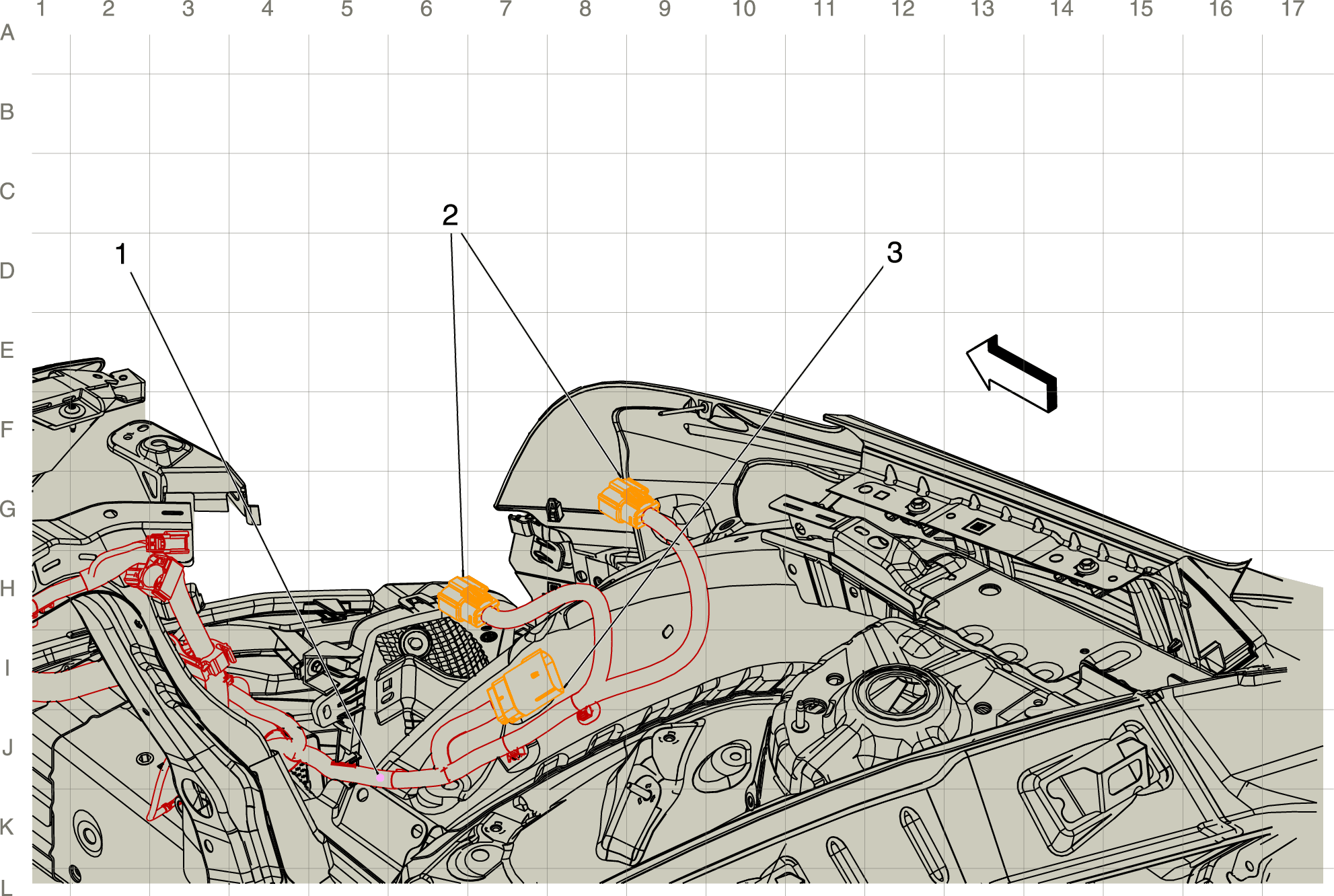

GM4277702Courtesy of GENERAL MOTORS COMPANY
Items
1 J109 Forward Lamp Harness (UVH)
2 X120 Forward Lamp Harness to Right Headlamp Assembly Harness X120 Forward Lamp Harness to Right Headlamp Harness
3 X104 Body Harness to Forward Lamp Harness X104 Body Harness to Forward Lamp Harness
