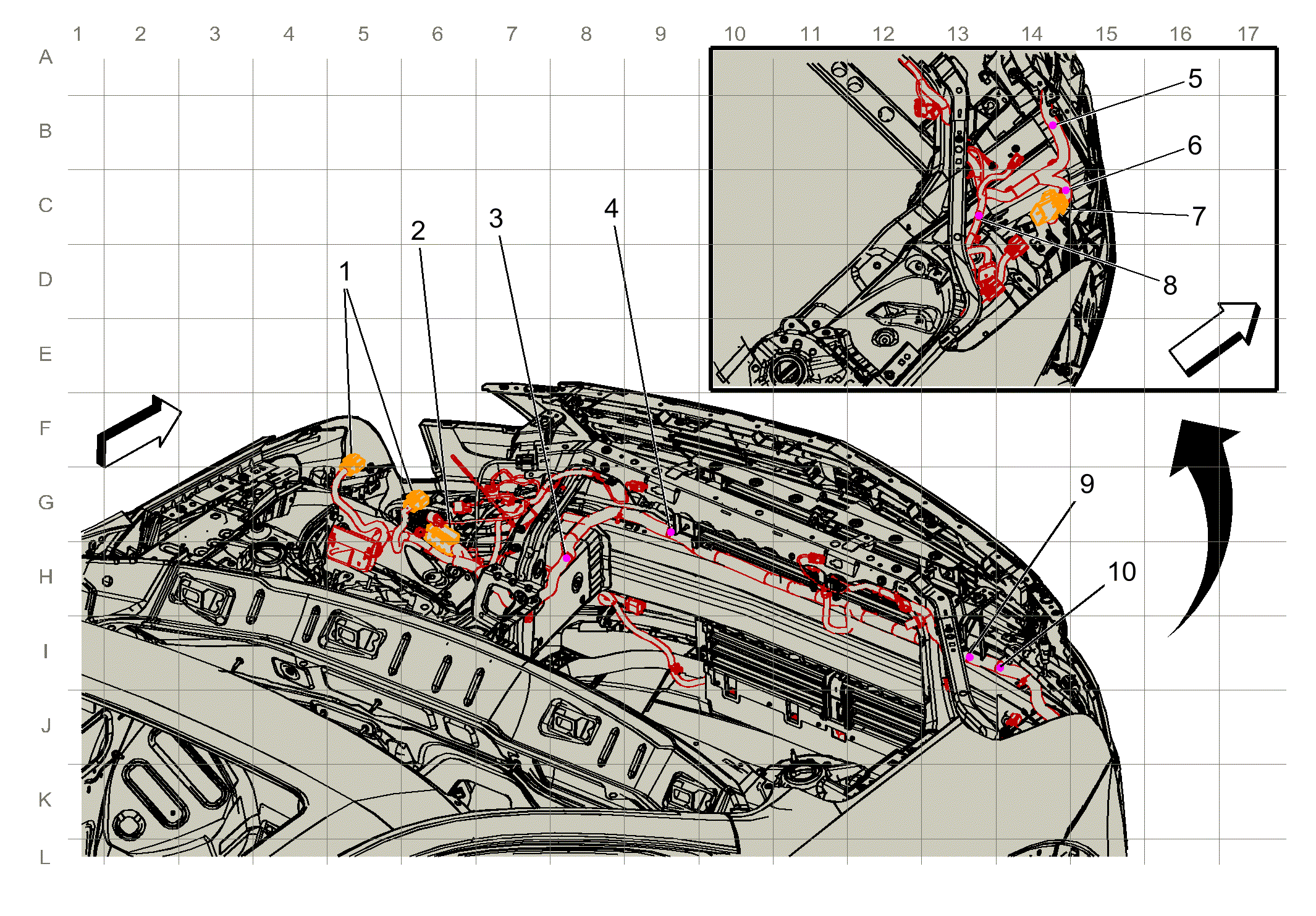

Forward Lamp Harness Routing (1 of 2)
| Items |
|---|
| 1 X110 Forward Lamp Harness to Left Headlamp Assembly Harness X110 Forward Lamp Harness to Left Headlamp Harness |
| 2 X101 Body Harness to Forward Lamp Harness X101 Body Harness to Forward Lamp Harness |
| 3 J100 Forward Lamp Harness |
| 4 J101 Forward Lamp Harness |
| 5 J106 Forward Lamp Harness |
| 6 J108 Forward Lamp Harness (UVH) |
| 7 X102 Front Fascia Harness to Forward Lamp Harness X102 Front Fascia Harness to Forward Lamp Harness |
| 8 J107 |
| 9 J104 Forward Lamp Harness (UGN) |
| 10 J105 Forward Lamp Harness (T4A) |
