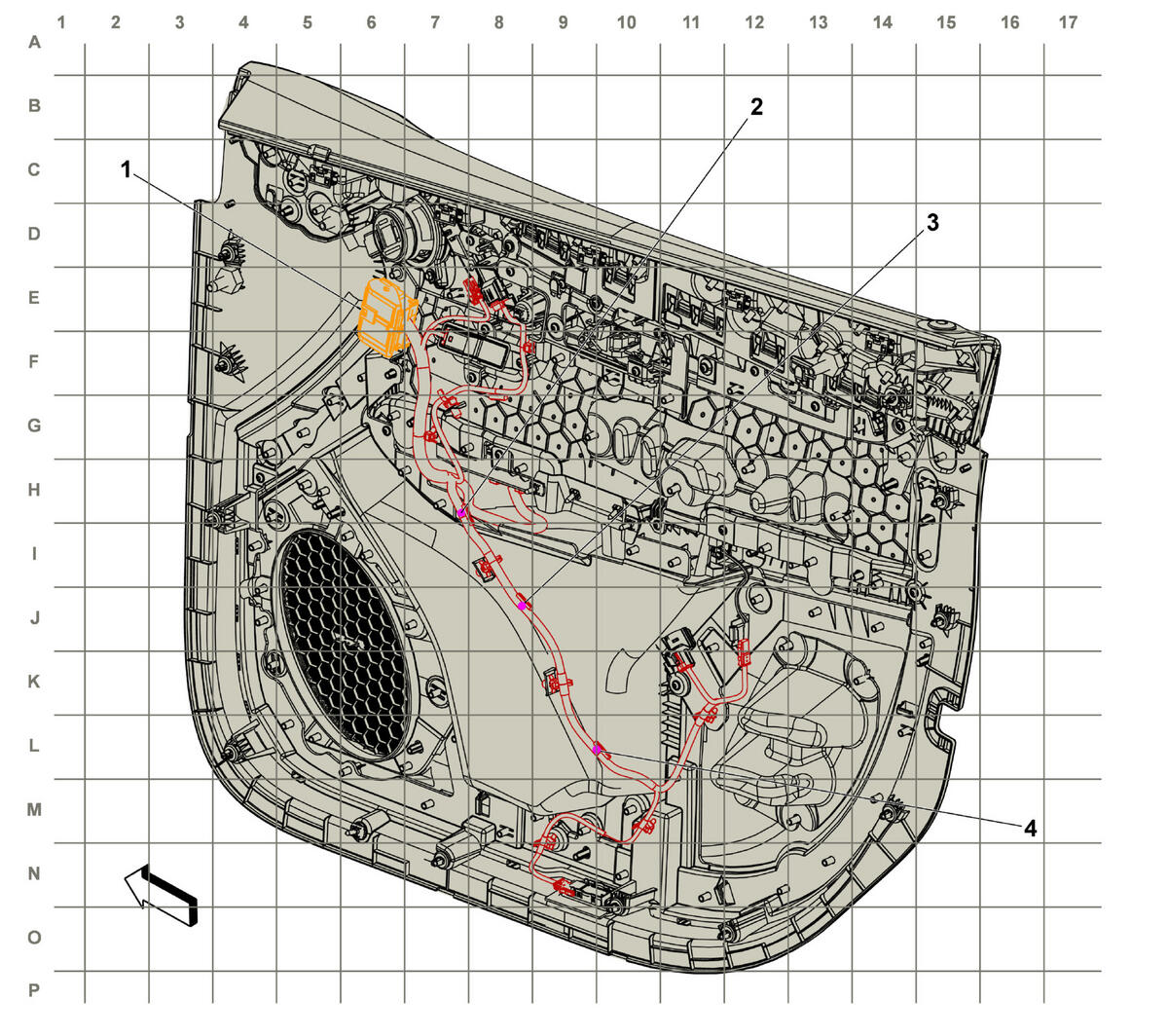

Driver Door Trim Harness Routing

GM4278188Courtesy of GENERAL MOTORS COMPANY
Items
1 X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness
2 J502 Driver Door Trim Harness (TSP)
3 J503 Driver Door Trim Harness
4 J504 Driver Door Trim Harness (TB5)
