Chassis Harness Routing - Rear Underbody

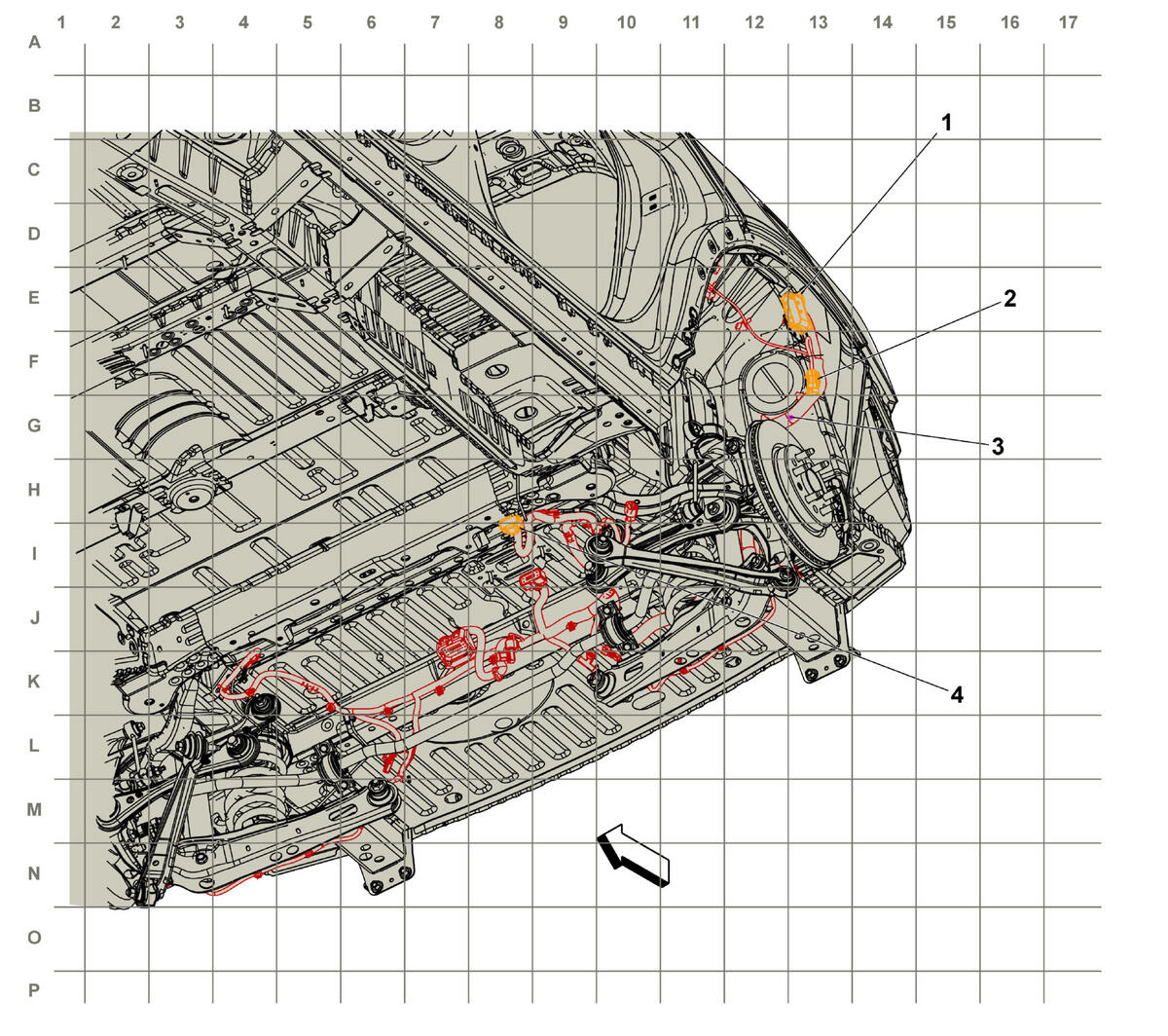

GM4278174Courtesy of GENERAL MOTORS COMPANY
Items
1 X409 Body Harness to Chassis Harness X409 Body Harness to Rear Chassis Harness
2 X410 Body Harness to Chassis Harness X410 Body Harness to Rear Chassis Harness
3 J400 Chassis Harness
4 X350 Chassis Harness to Fuel Tank Harness X350 Rear Chassis Harness to Fuel Tank Harness
