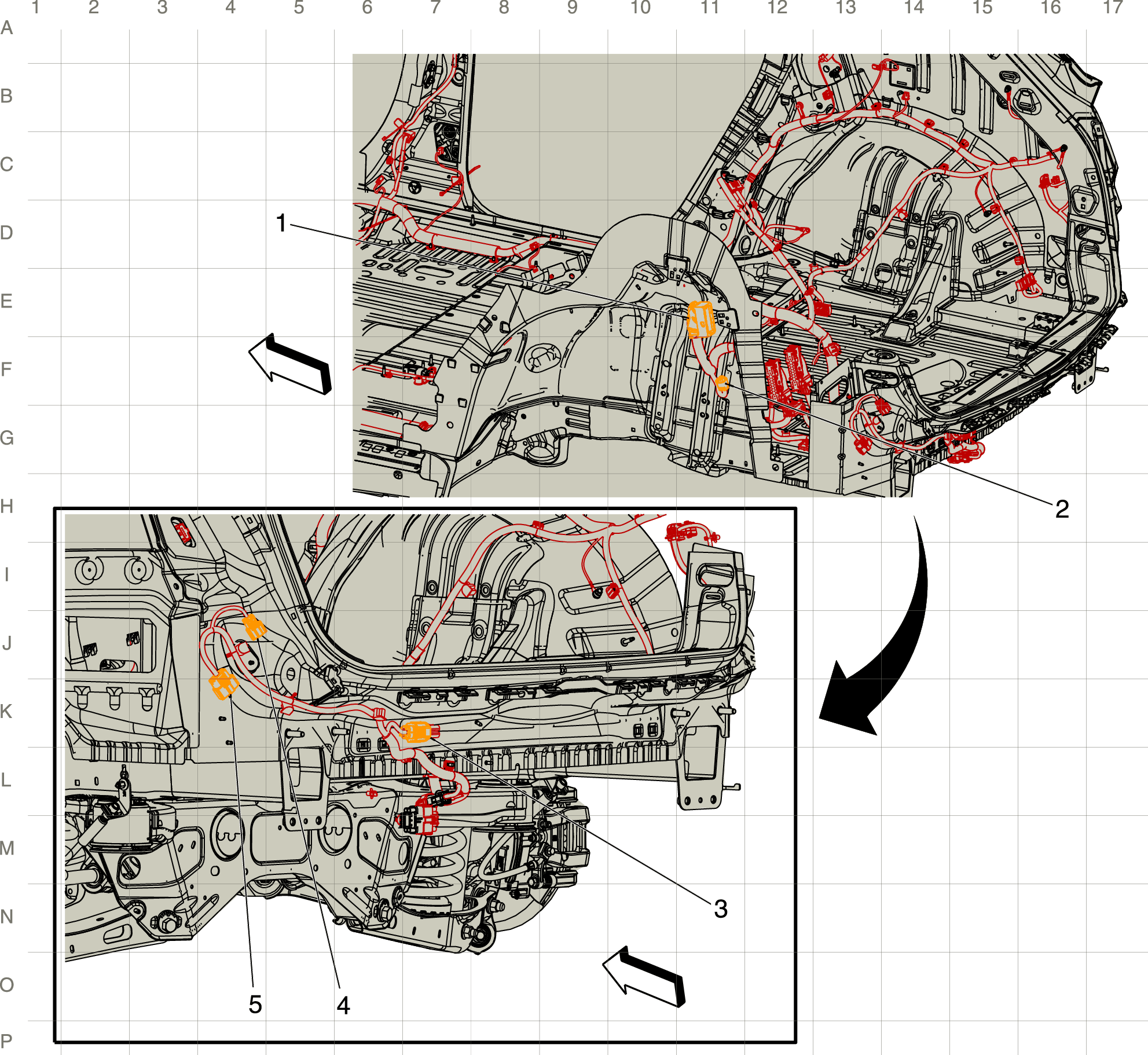

Body Harness Routing Rear Exterior

GM4993425Courtesy of GENERAL MOTORS COMPANY
Items
1 X411 Body Harness to Trailer Harness (Without U4G) X411 Body Harness to Trailer Tow Harness
2 X412 Trailer Harness to Body Harness (U4G) X412 Trailer Tow Harness to Body Harness (U4G)
3 X413 Trailer Harness to Body Harness (U4G or V92) X413 Trailer Tow Harness to Body Harness (U4G/V92)
4 X400 Body Harness to Rear Fascia Harness X400 Body Harness to Rear Fascia Harness
5 X408 Body Harness to Rear Fascia Harness (UGN)
