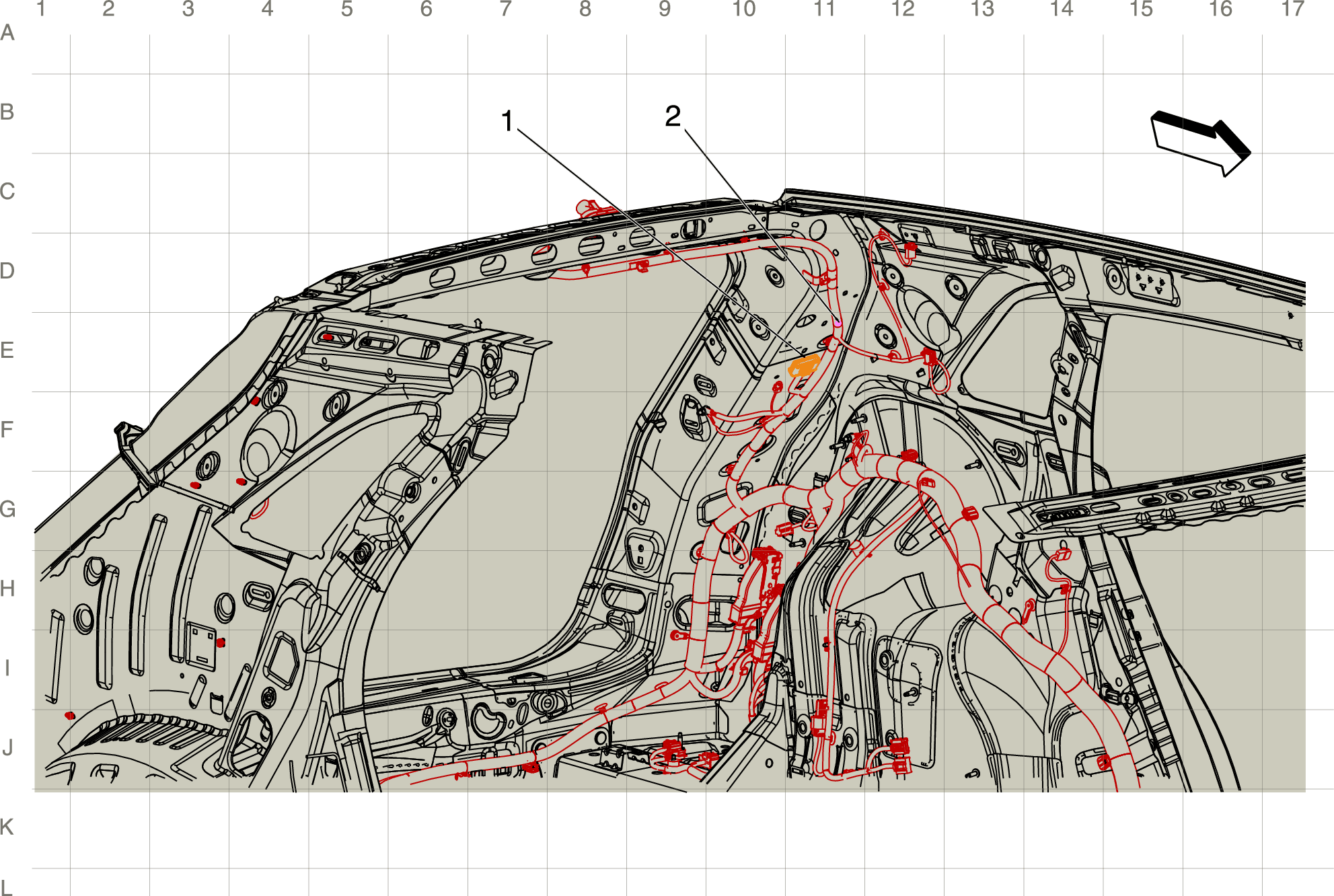

Body Harness Routing Left Side of Rear Compartment

GM4278127Courtesy of GENERAL MOTORS COMPANY
Items
1 X305 Body Harness to Headliner Harness X305 Body Harness to Headliner Harness
2 J333 Body Harness
