Body Harness Routing Front Center of Passenger Compartment

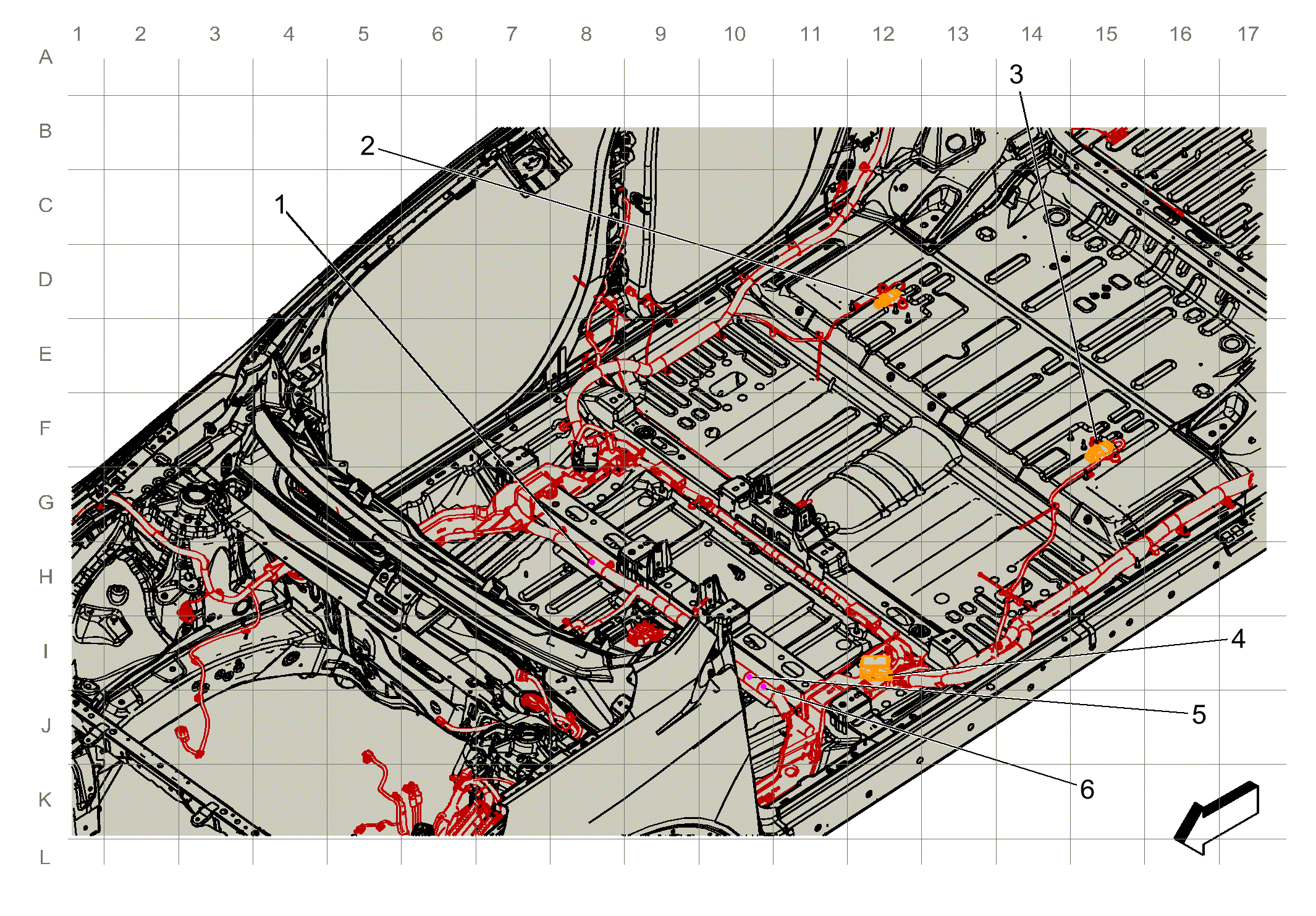

GM4278115Courtesy of GENERAL MOTORS COMPANY
Items
1 J314 Body Harness
2 X304 Right Rear Seat Harness to Body Harness (KA6) X304 Right Rear Seat Harness to Body Harness (KA6)
3 X303 Left Rear Seat Harness to Body Harness (KA6) X303 Left Rear Seat Harness to Body Harness (KA6)
4 X301 Driver Seat Harness to Body Harness X301 Driver Seat Harness to Body Harness
5 J310 Body Harness
6 J309 Body Harness
