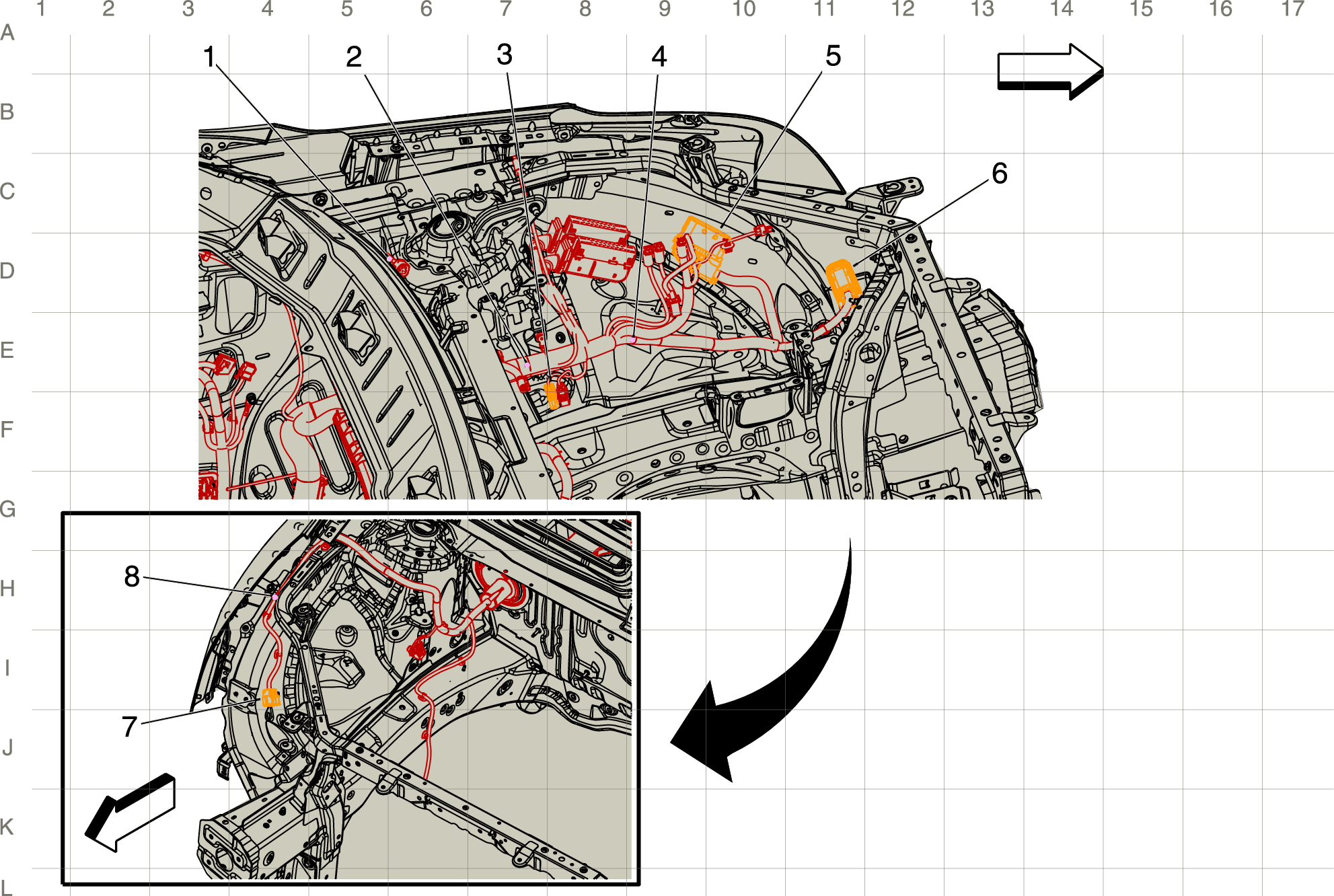

Body Harness Routing Engine Compartment (2 of 2)
| Items |
|---|
| 1 J135 Body Harness |
| 2 J133 Body Harness |
| 3 X107 Right Front Shock Absorber Actuator Jumper Harness to Body Harness (F45) X107 Right Front Shock Absorber Actuator Jumper Harness to Body Harness (F45) |
| 4 J136 Body Harness |
| 5 X112 Engine Harness to Body Harness X112 Engine Harness to Body Harness |
| 6 X101 Body Harness to Forward Lamp Harness X101 Body Harness to Forward Lamp Harness |
| 7 X104 Body Harness to Forward Lamp Harness X104 Body Harness to Forward Lamp Harness |
| 8 J132 Body Harness (UVH) |
