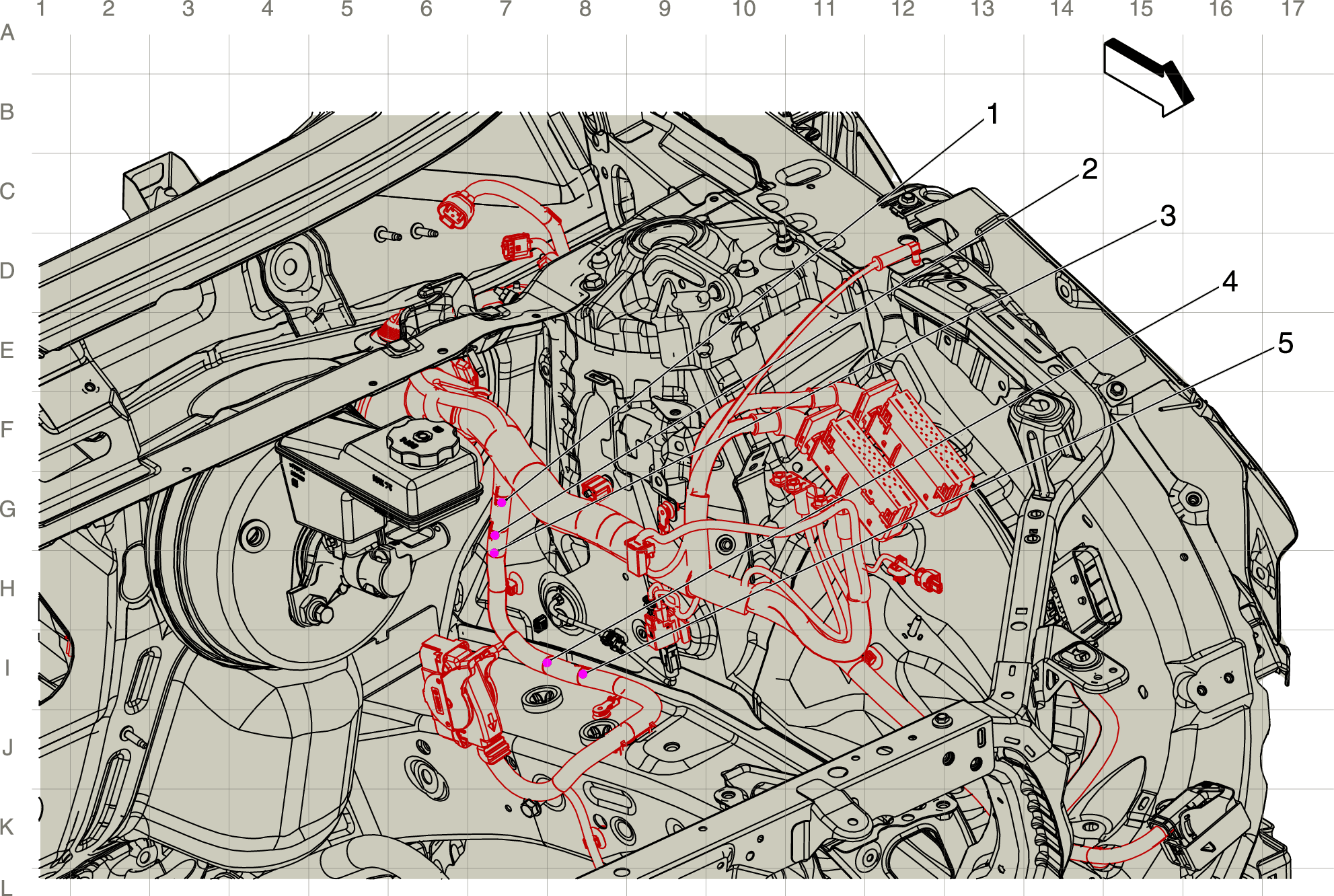

Body Harness Routing Engine Compartment (1 of 2)

GM4277839Courtesy of GENERAL MOTORS COMPANY
Items
1 J141 Body Harness
2 J140 Body Harness
3 J139 Body Harness
4 J138 Body Harness
5 J137 Body Harness
