Rear Seat Removal and Installation (40%)

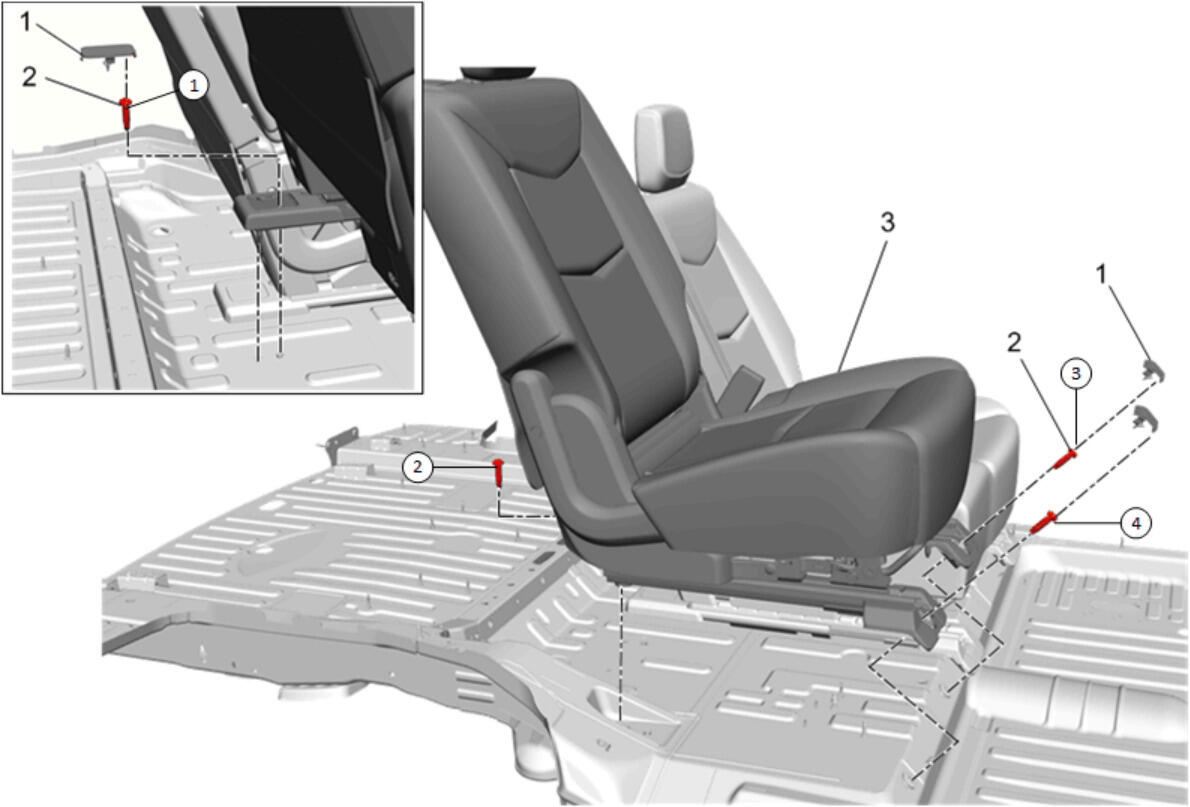

GM4309864

Callout

Component Name

1

Rear Seat Track Cover

2

Rear Seat Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

3

Rear Seat

Procedure

Disconnect electrical connections, if applicable.
Fold the rear seat back cushion down to gain access to the rear seat bolts.
Disconnect the recliner cable from the release lever cable equalizer. Lift the carpet flap to access, slide the retainer door open and disconnect the cable.
With the aid of an assistant remove the rear seat, by lifting and pulling the seat upward to disengage it from the floor.
