Instrument Panel Trim Pad Replacement - Right Side

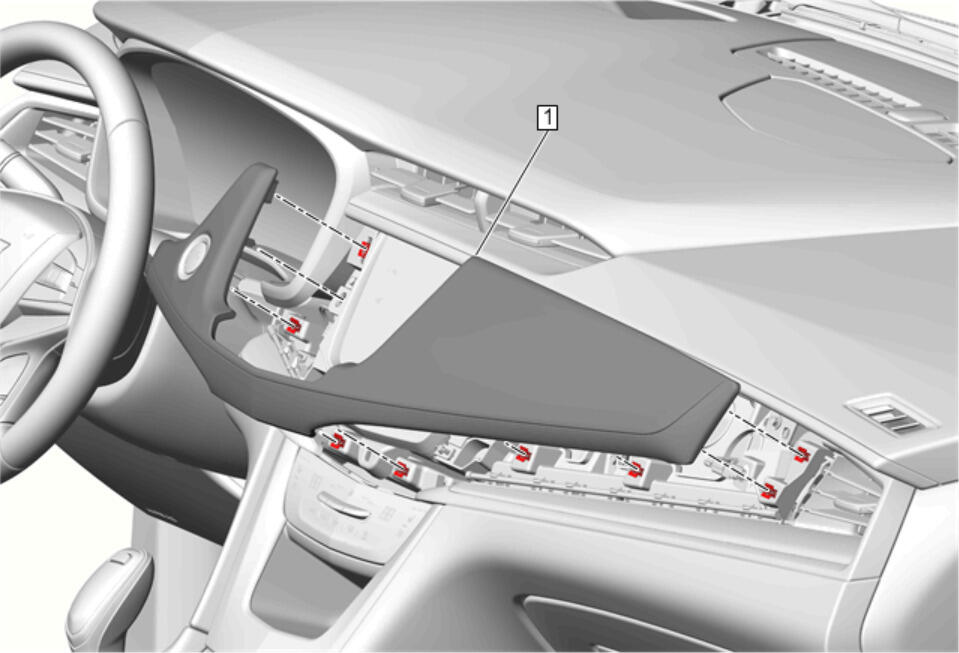

GM4262598
Callout Component Name
1 Instrument Panel Trim Pad

Procedure

  1. Using a flat-bladed plastic trim tool, release the retainer clips.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
