Fuel Tank Filler Door Replacement

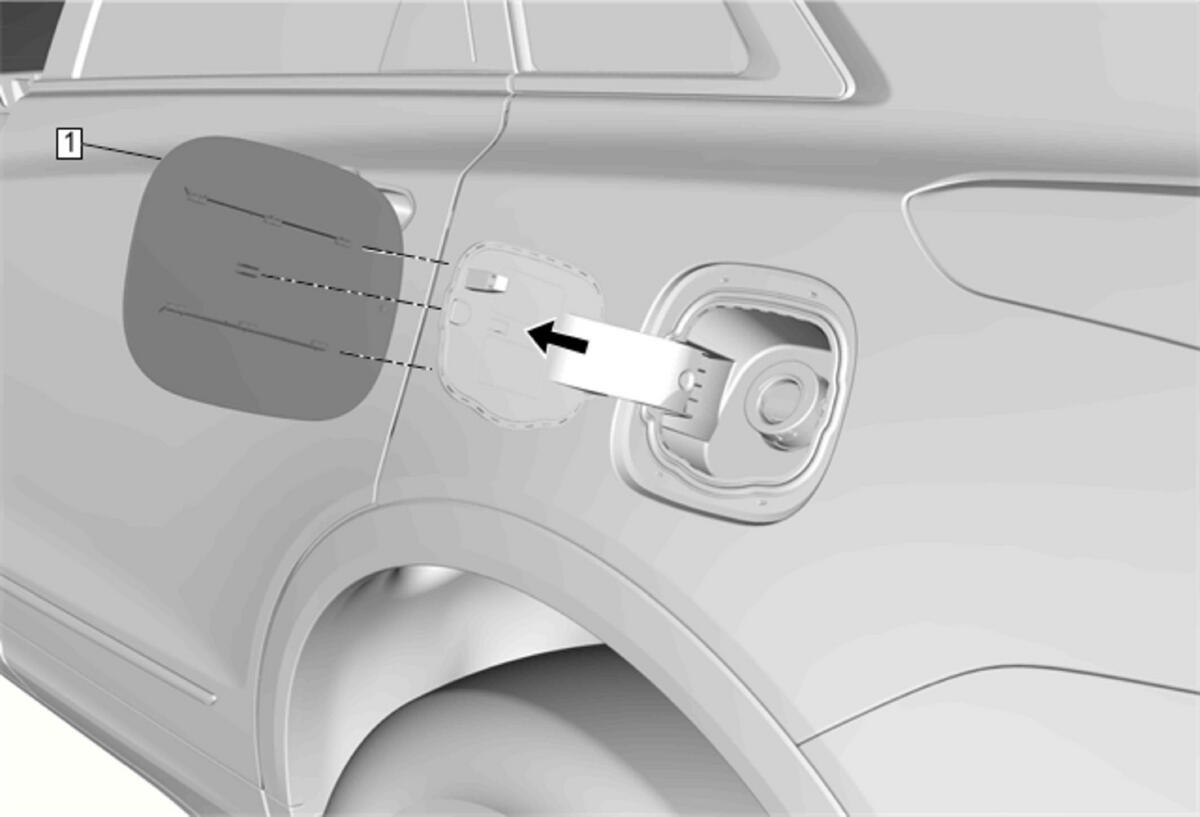

| Callout | Component Name |
|---|---|
| 1 | Fuel Tank Filler Door
NOTE:
When replacing the fuel tank filler door with a new door, a new label is required to be added to the new fuel filler door. Procedure Position the fuel tank filler door to the full open position. Using light outward sliding pressure on the filler door, release the retainer on the fuel tank filler door from the hinge. |
