Radio Front Center Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

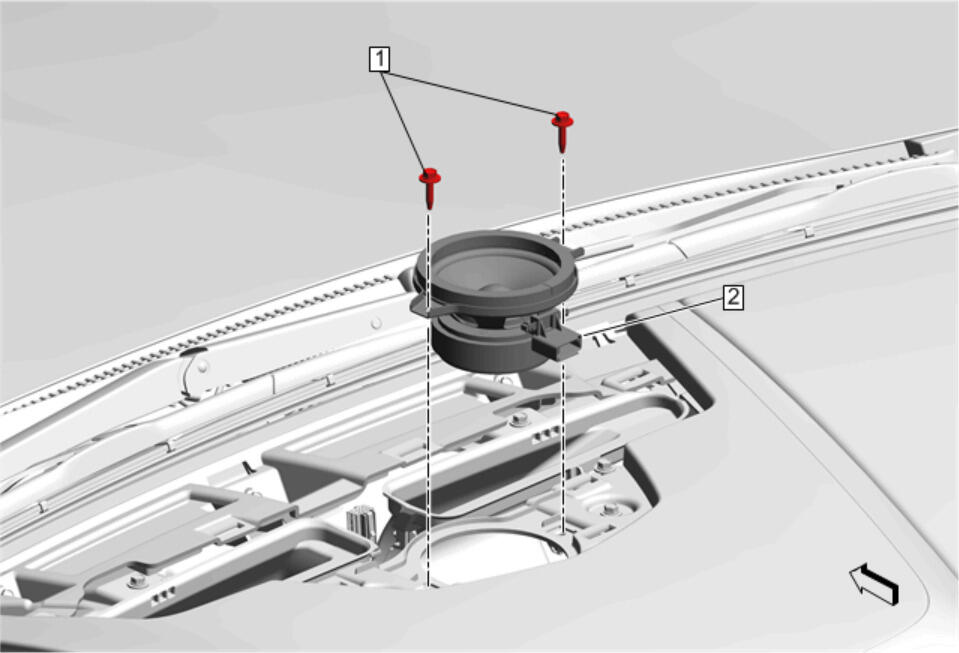

Callout	Component Name
Preliminary Procedure  Instrument Panel Extension Replacement
1	Radio Front Center Speaker Bolt[2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Front Center Speaker Procedure  Disconnect the electrical connector.
