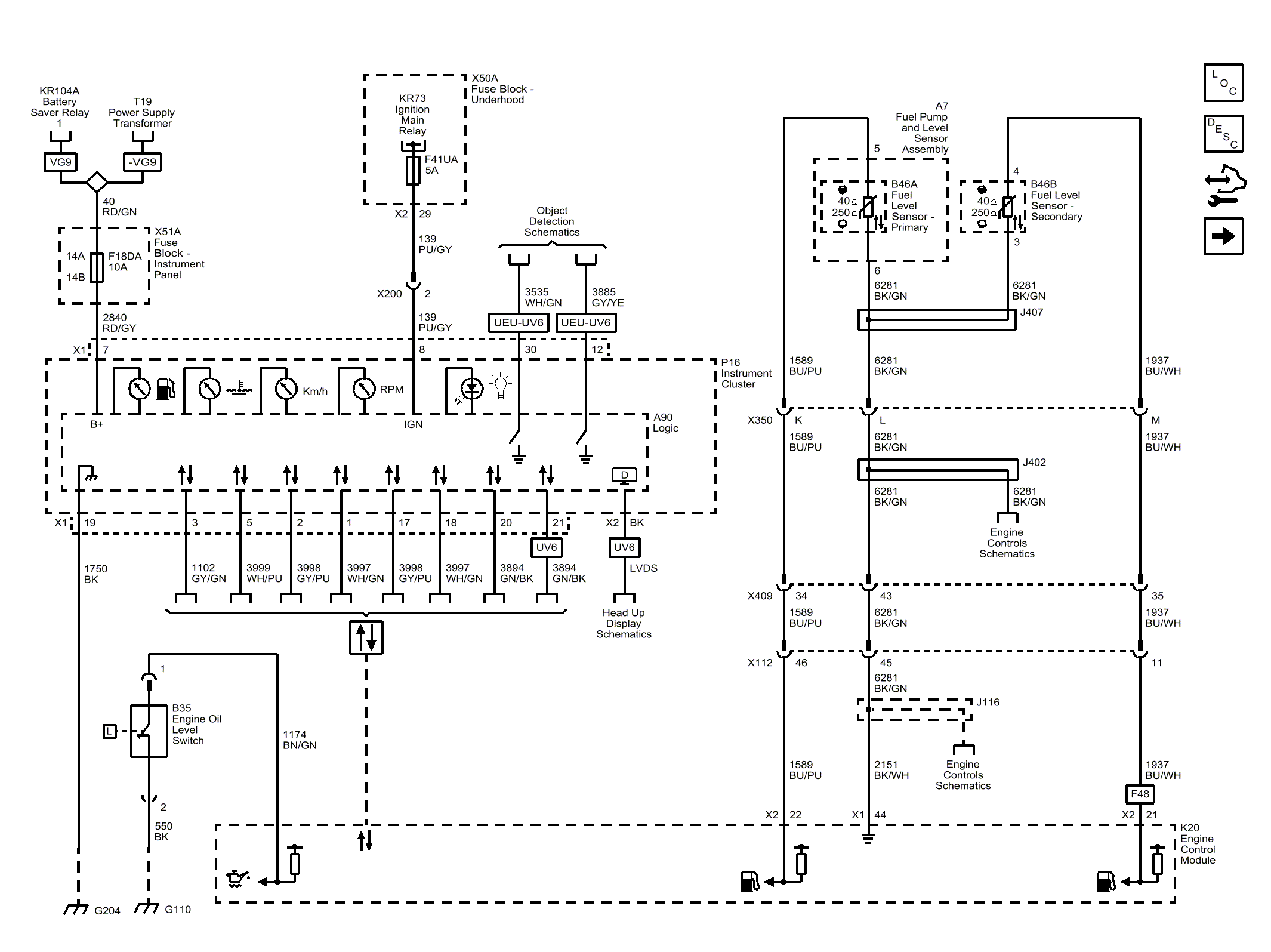

Home >> Cadillac >> 2018 >> XT5 Base, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic and Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Power, Ground, Gauges, and Serial Data
