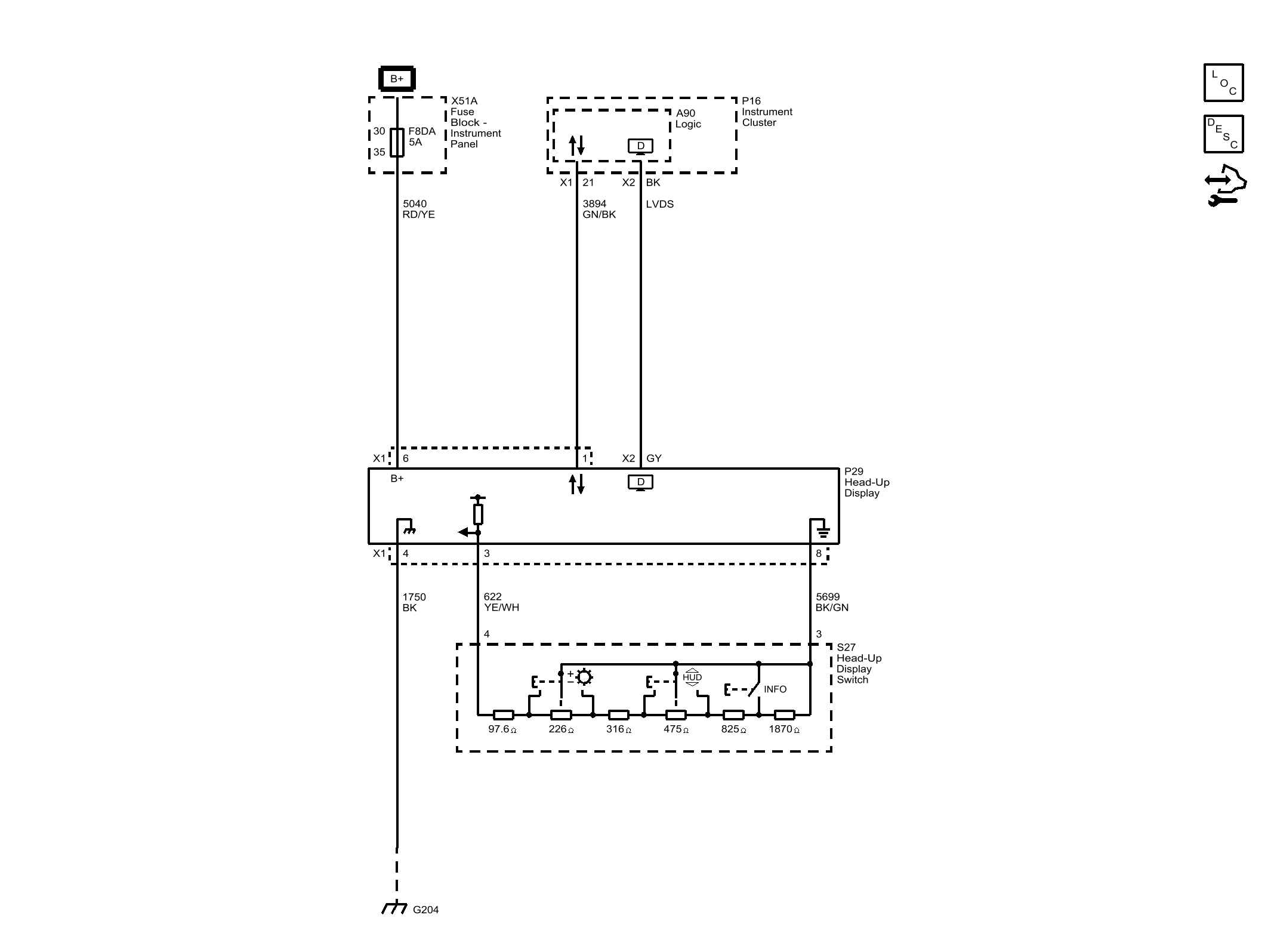

Home >> Cadillac >> 2018 >> XT5 Base, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic and Wiring Diagrams >> Head-Up Display Wiring Schematics >> Head-Up Display (UV6)
