Ambient Air Temperature Sensor Replacement

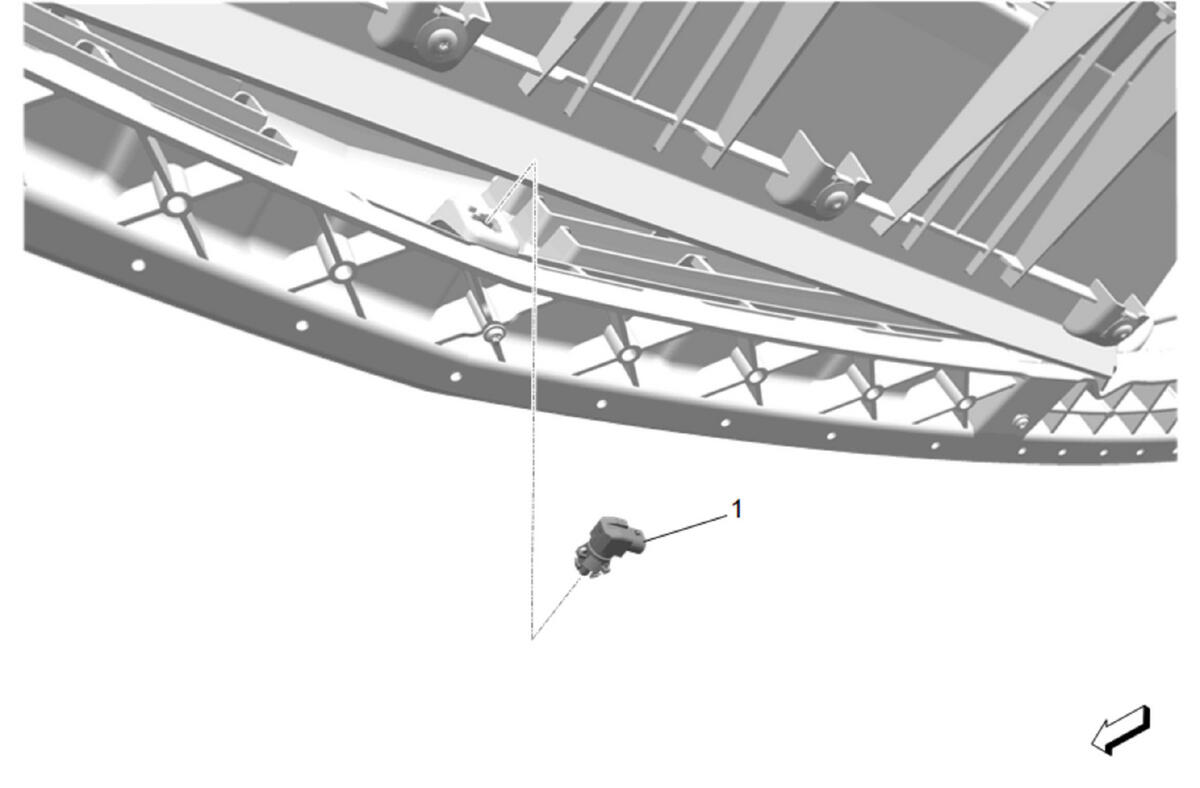

GM4286323Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Ambient Air Temperature Sensor

Procedures

  1. Disconnect the electrical connector.
  2. Squeeze the ambient air temperature sensor retaining tabs to remove from the front bumper fascia assembly.
