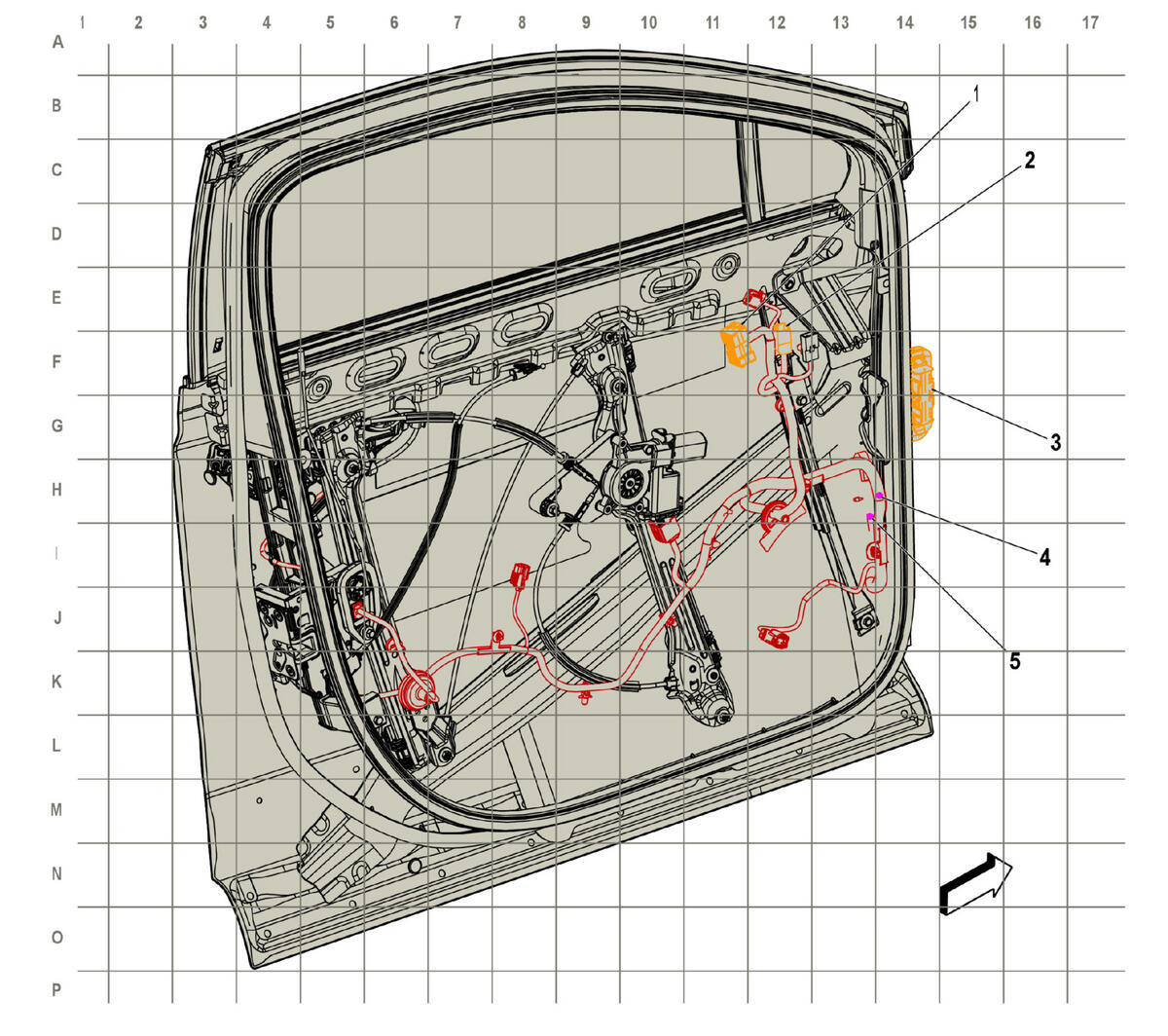

Driver Door Harness Routing
| Items |
|---|
| 1 X505 Driver Door Harness to Driver Door Trim Harness X505 Driver Door Harness to Driver Door Trim Harness |
| 2 X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness |
| 3 X511 Outside Rearview Mirror - Driver Harness to Driver Door Harness (UVH) X511 Outside Rearview Mirror - Driver Harness to Driver Door Harness (UVH) |
| 4 X500 Driver Door Harness to Body Harness |
| 5 J501 Driver Door Harness |
| 6 J500 Driver Door Harness |
