Instrument Panel Outer Air Outlet Replacement - Left Side (Cadillac)

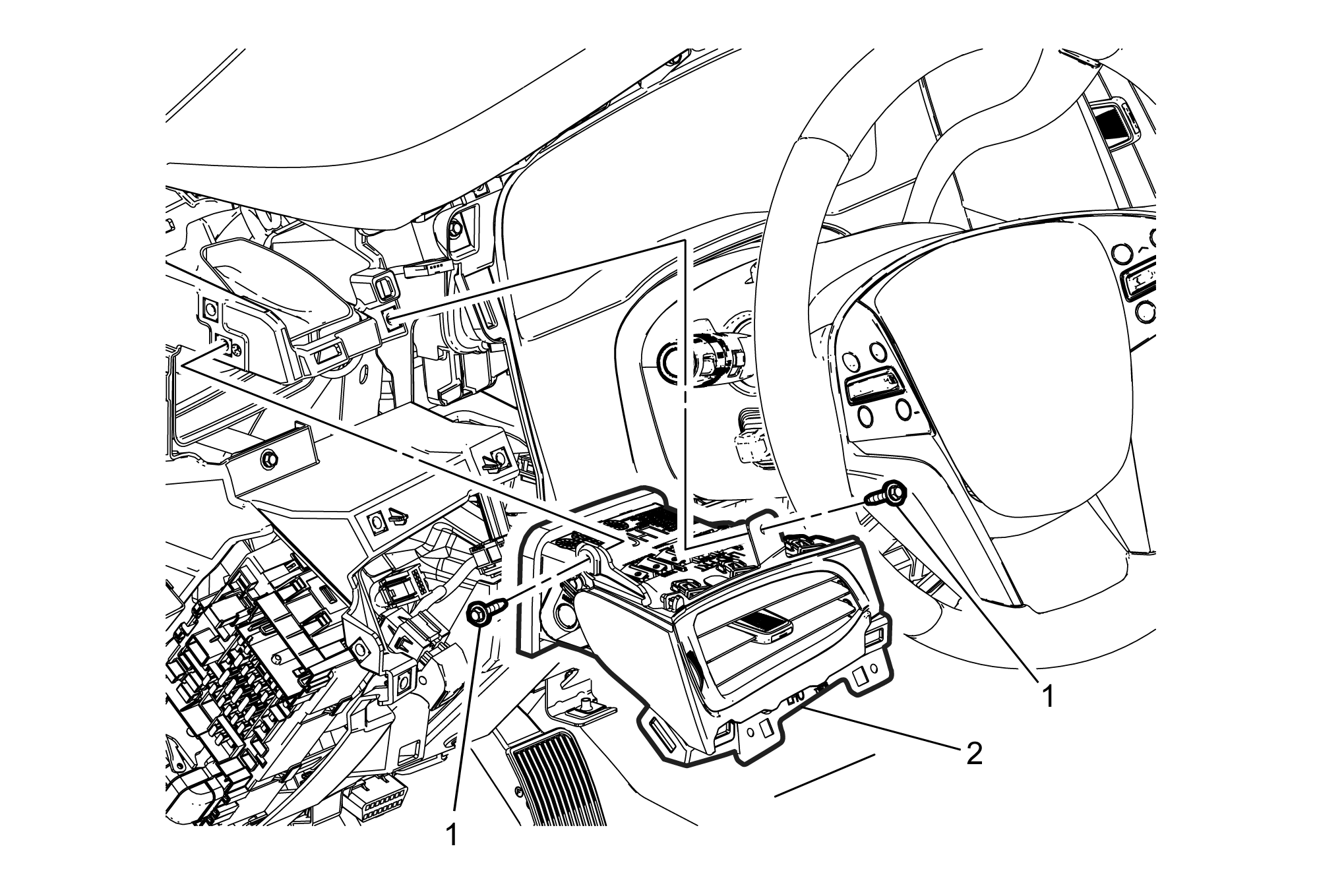

Fig 1: Left Instrument Panel Outer Air Outlet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the left instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Left Side (Cadillac) . Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement (Cadillac) .
1	Instrument Panel Outer Air Outlet Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Outer Air Outlet

Callout

Component Name

Preliminary Procedures

Instrument Panel Outer Air Outlet Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Outer Air Outlet
