Sun Load Temperature And Headlamp Automatic Control Ambient Light Sensor Replacement

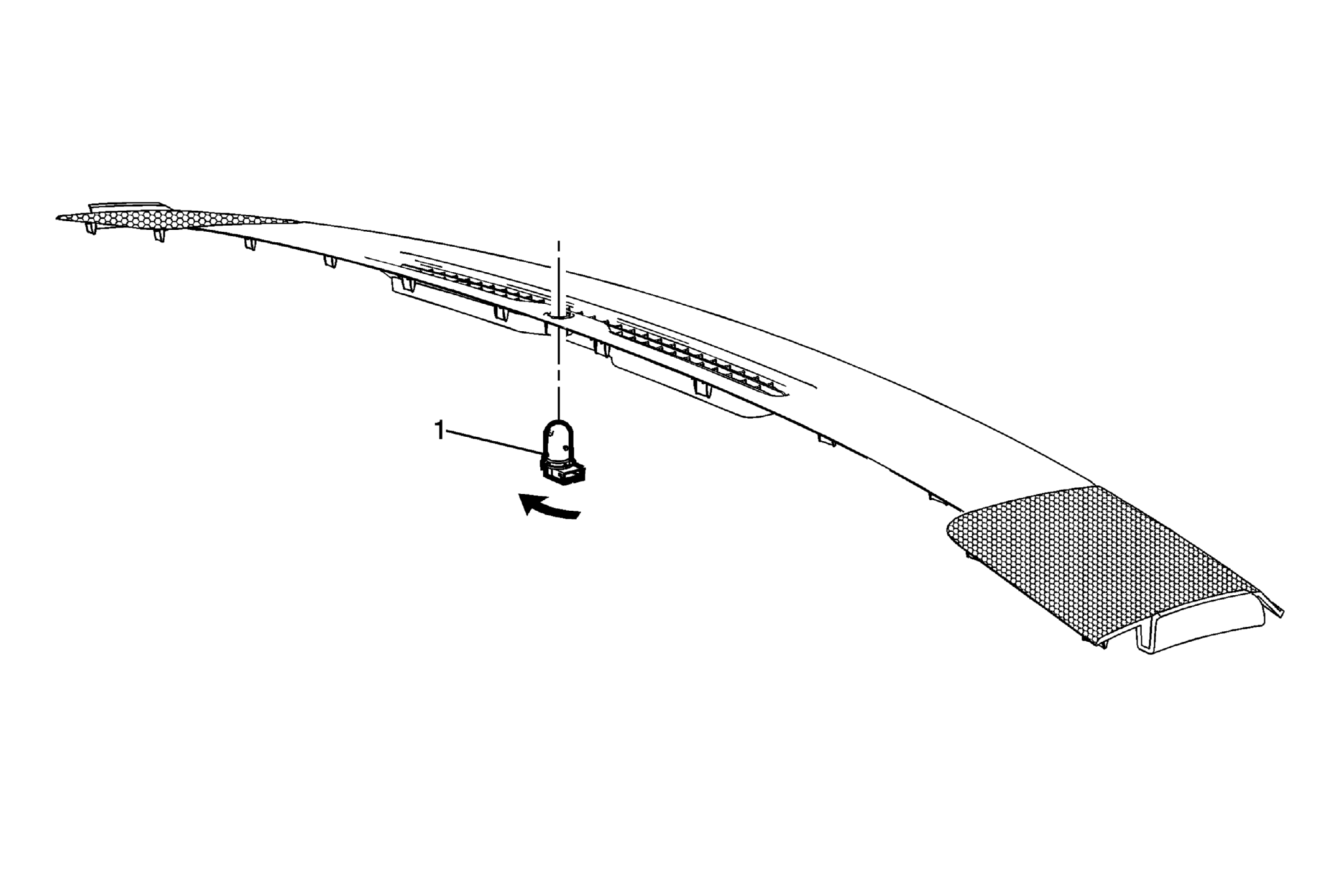

Fig 1: Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel extension assembly. Refer to Instrument Panel Extension Replacement (Cadillac) .
1	Sun Load Temperature and Headlamp Automatic Control and Ambient Light Sensor Procedures Disconnect the sun load temperature and headlamp automatic control and ambient light sensor electrical connector. Turn the sun load temperature and headlamp automatic control and ambient light sensor a quarter of a turn counter clockwise to remove.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel extension assembly. Refer to Instrument Panel Extension Replacement (Cadillac) .

Sun Load Temperature and Headlamp Automatic Control and Ambient Light Sensor

Procedures

Disconnect the sun load temperature and headlamp automatic control and ambient light sensor electrical connector.
Turn the sun load temperature and headlamp automatic control and ambient light sensor a quarter of a turn counter clockwise to remove.
