Sun Load Temperature And Headlamp Automatic Control Ambient Light Sensor Replacement (Z75)

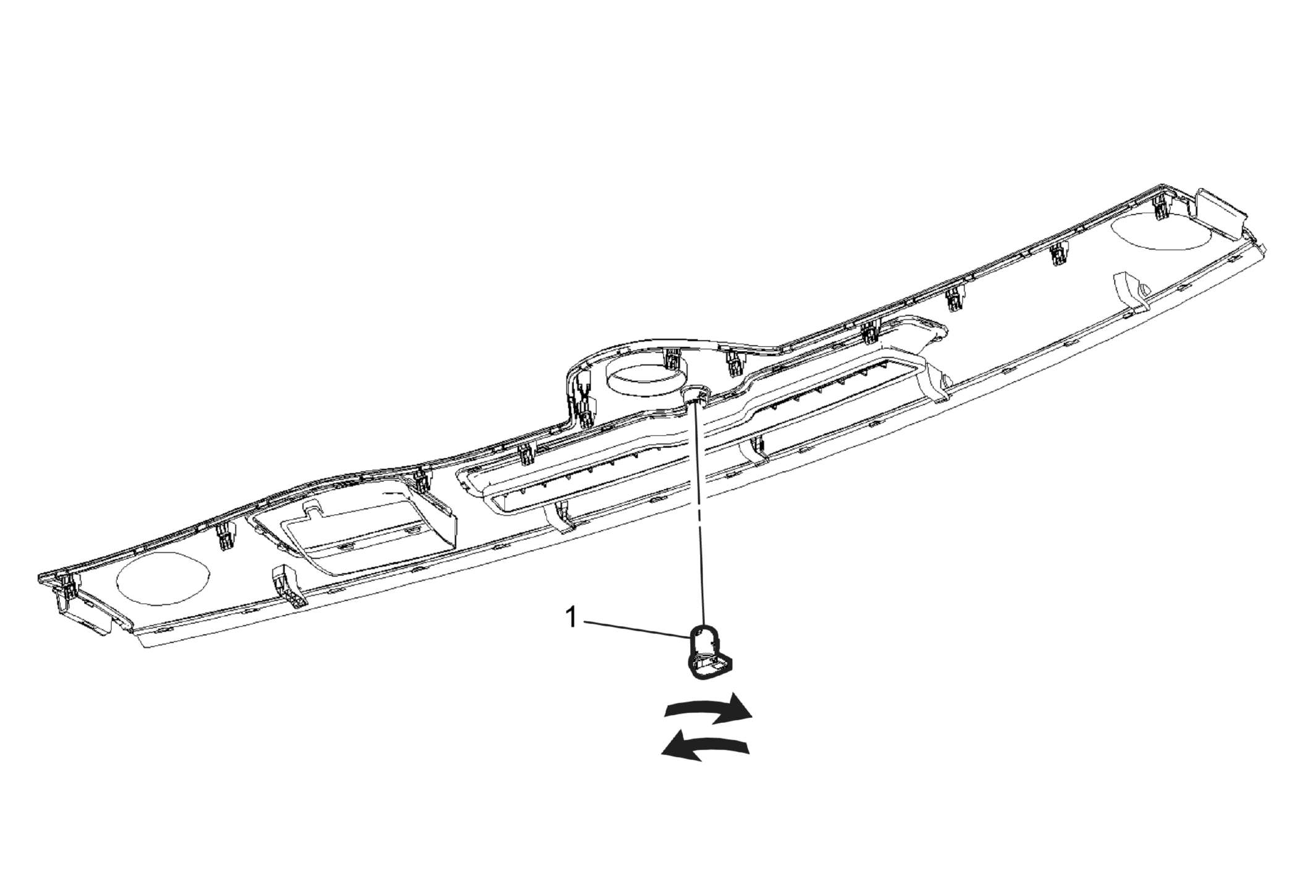

Fig 1: Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Instrument Panel Extension Replacement (Cadillac)
1	Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Procedures Disconnect the sun load temperature and headlamp automatic control and ambient light sensor electrical connector. Turn the sun load temperature and headlamp automatic control and ambient light sensor a quarter of a turn to remove.

Call out

Component Name

Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor

Procedures

Disconnect the sun load temperature and headlamp automatic control and ambient light sensor electrical connector.
Turn the sun load temperature and headlamp automatic control and ambient light sensor a quarter of a turn to remove.
