Special Tools
WARNING: This page is about a different variant/trim than selected.
| Illustration | Tool Number/Description |
|---|---|

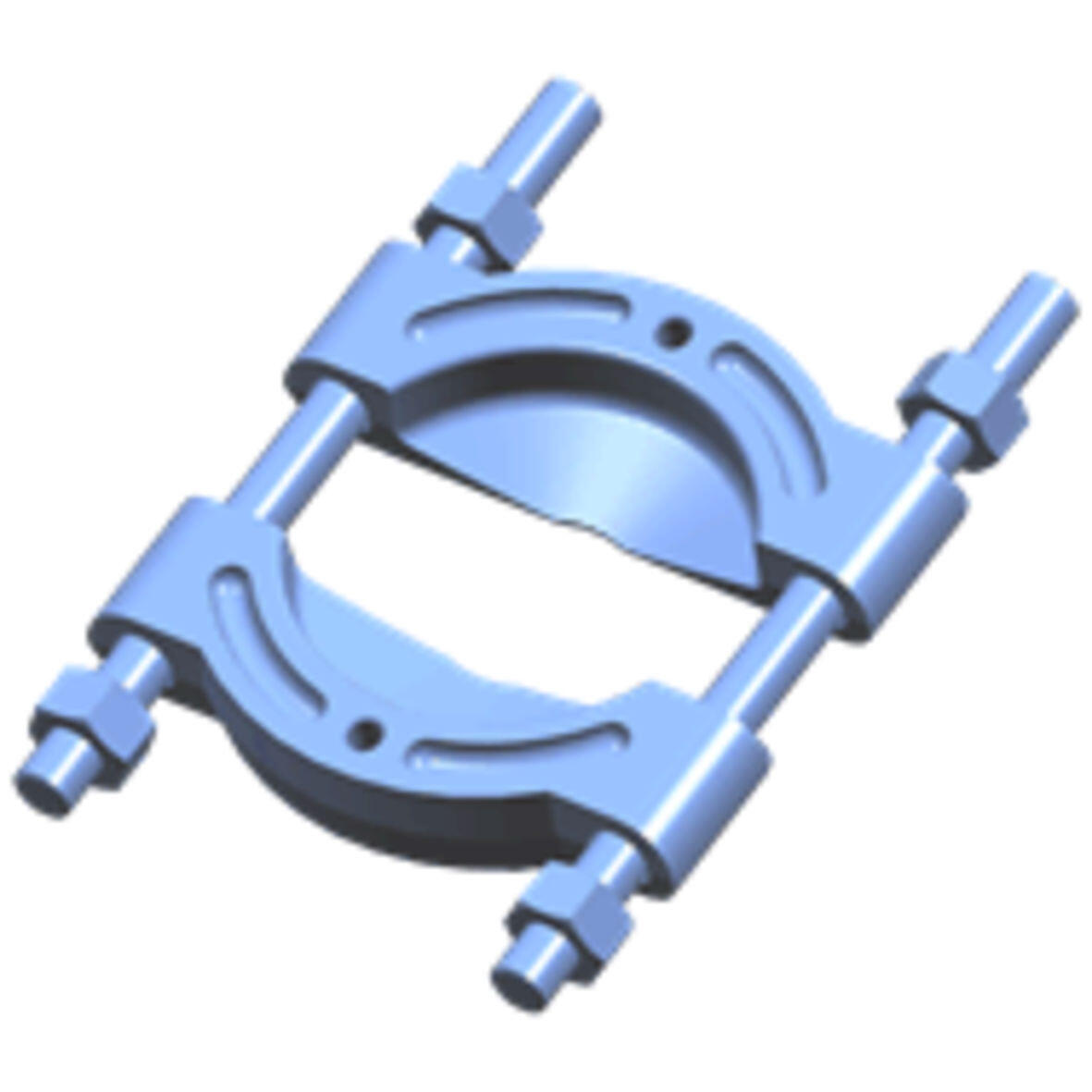

| DT-22912-B Split Plate Bearing Puller |
|
| DT-35512 J-35512 Inner Pinion Bearing Installer |
|
| DT-36183 J-36183 Press Tube |
|
| DT-42738 J-42738 Seal Installer |
|
| DT-44907 J-44907 Bearing Installer |
|
| DT-44737 J-44737 Shift Rail Bearing Remover |
|
| DT-45380 J-45380 Transfer Case Rear Bushing Remover and Installer |
|
| DT-45759 J-45759 Assembly Fixture |
|
| DT-48021 Seal Installer |
|
| DT-48022 Output Bushing Installer |
|
| DT-48209 Bushing Remover |
|
| DT-48210 Seal Installer |
|
| DT-48211 Drive Sprocket Bearing Installer |
|
| DT-48212 Input Shaft Pilot Bearing Installer |
|
| DT-48734 Extension Housing Bushing Replacer |
|
| DT-48213 Clutch Pack Height Gauge |
|
| DT-50648-A Seal Installer |
|
| DT-50649 Seal Installer |
|
| DT-50802 Threaded Rod Kit |
|
| DT-51335 Seal Installer |
|
| EL-49741 9 V+ Power Source Harness |
|
| EL-49742 Battery Voltage B+ and Ground Source Harness |
|
| GE-8433-1 J-8433-1 Puller Bar |
|
| GE-8092 J-8092 Driver Handle |
|
| GE-02619-A J-02619-A Slide Hammer |
|
| GE-08614-A J-08614-A Holder and Remover |
|
| GE-3289-20 J-3289-20 Holding Fixture |
|
| J-44907 Bearing Installer |
|
| J-45278 Seal Remover |
