Section 1 (Transfer Case - Mp 3023/3024 (NQH))
>>
Schematic Wiring Diagrams
>>
Transfer Case Control Wiring Schematics
>>
Front Axle Controls
Front Axle Controls
WARNING:
This page is about a different variant/trim than selected.

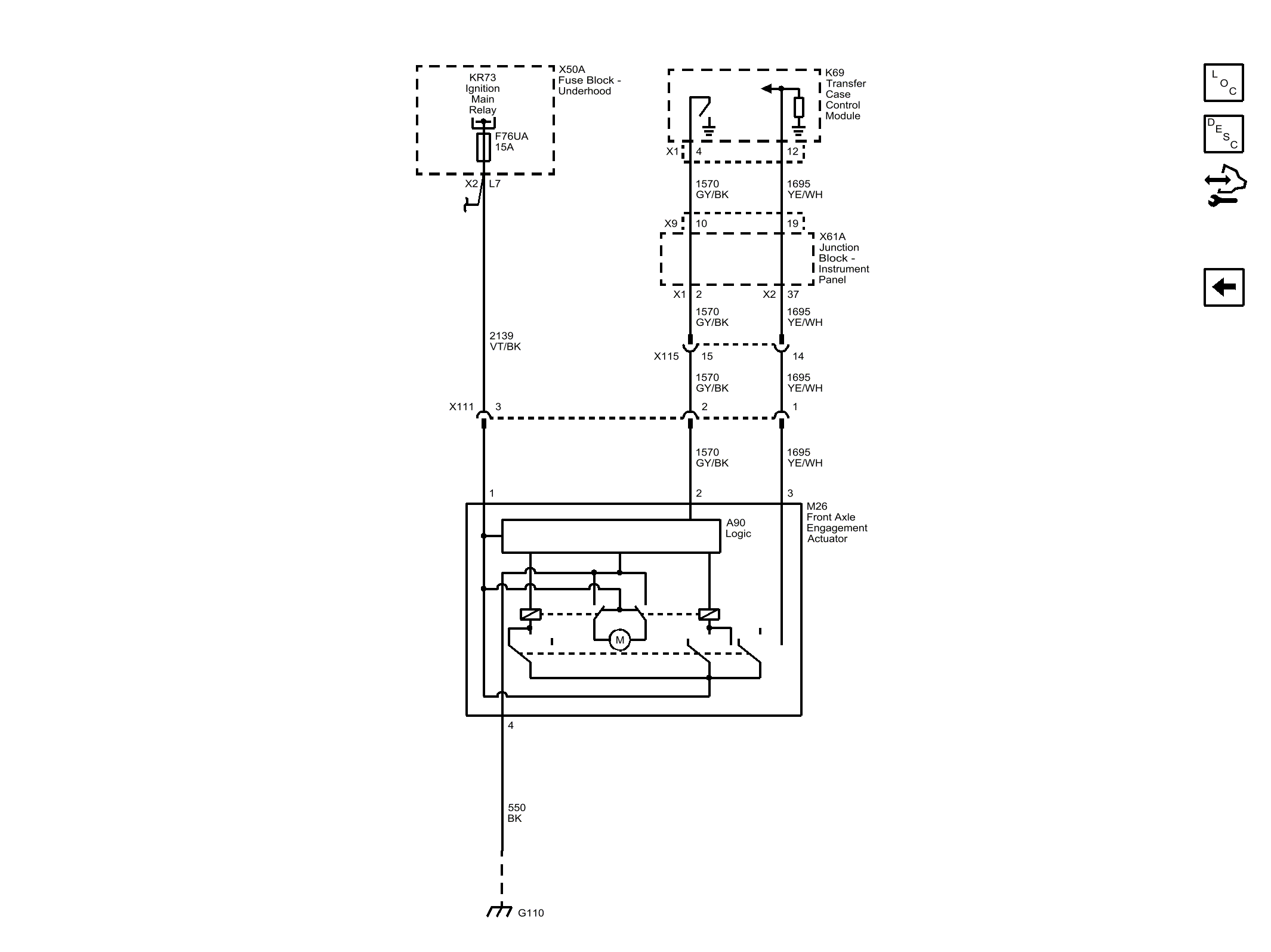

Fig 1: Front Axle Controls
Courtesy of GENERAL MOTORS COMPANY
