Input Shaft and Planetary Assembly Installation
WARNING: This page is about a different variant/trim than selected.

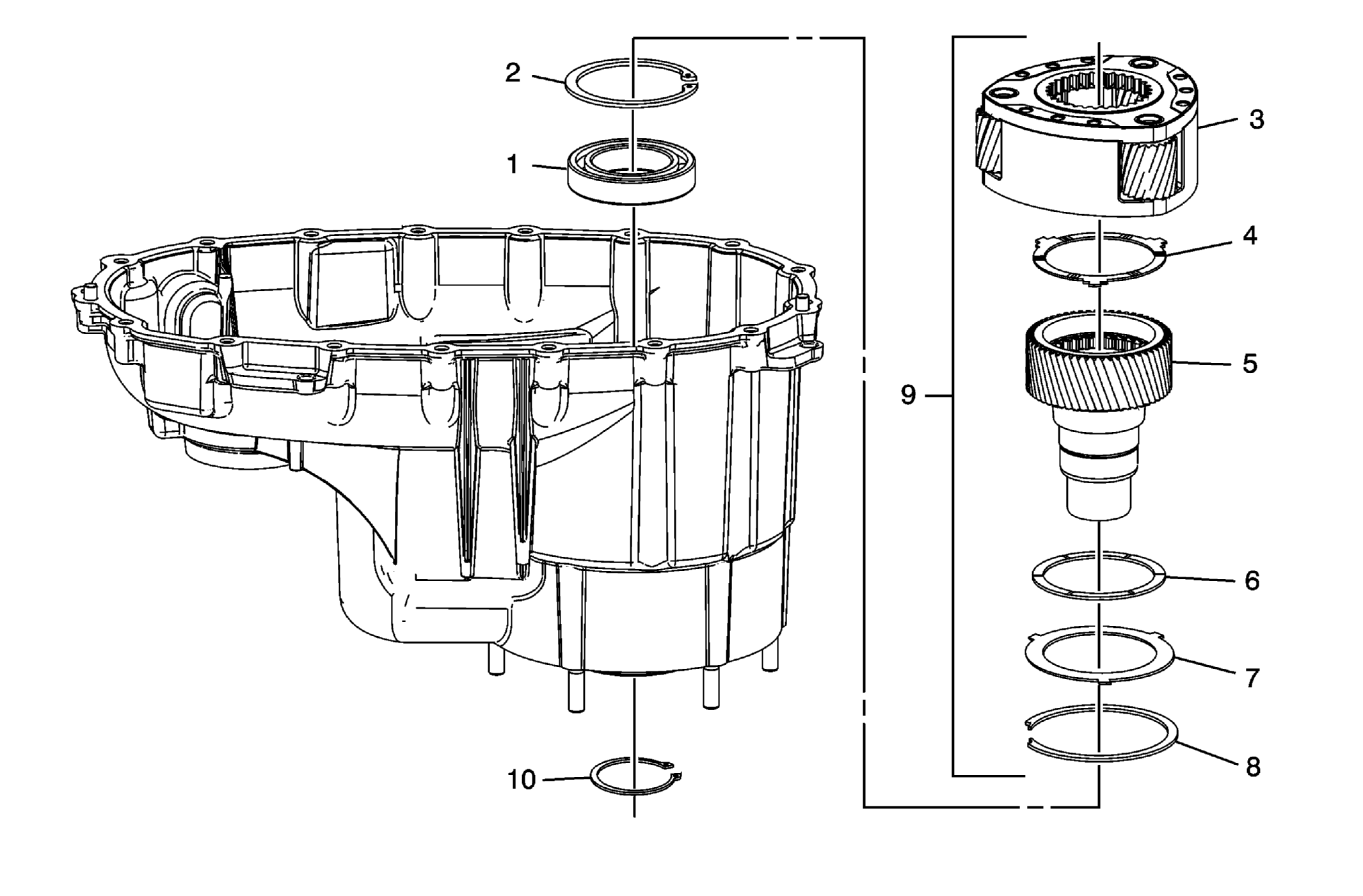

Input Shaft and Planetary Assembly Installation
| Callout | Component Name |
|---|---|
| 1 | Transfer Case Input Shaft Bearing Assembly |
| 2 | Transfer Case Input Shaft Inner Retaining Ring |
| 3 | Transfer Case High/Low Planetary Carrier Assembly |
| 4 | Transfer Case Planetary Carrier Sun Gear Thrust Washer |
| 5 | Transfer Case Input Shaft |
| 6 | Transfer Case Planetary Carrier Sun Gear Thrust Washer |
| 7 | Transfer Case High/Low Locking Plate |
| 8 | Transfer Case High/Low Planetary Carrier Retaining Ring |
| 9 | Transfer Case Input Shaft/Planetary Assembly
NOTE:
Refer to Interim Model Year Design Change - NQF/NQG/NQH Front Case Half Assembly, Input Shaft, Planetary Carrier High/Low Clutch in the New Product Information.
|
| 10 | Transfer Case Input Shaft Bearing Outer Retaining Ring |
