Magna Transfer Case Bar Code Label

WARNING: This page is about a different variant/trim than selected.

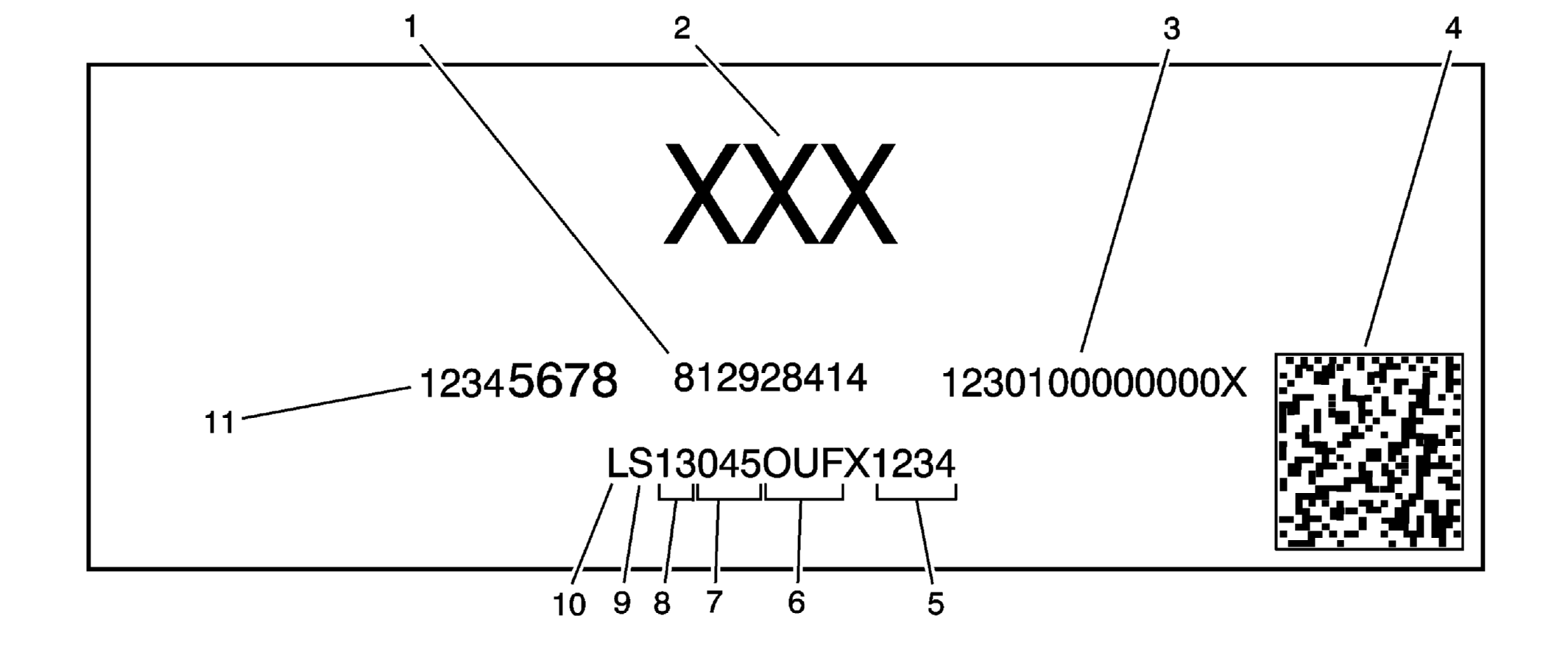

Fig 1: Identifying Magna Transfer Case Bar Code Label
GM3991447Courtesy of GENERAL MOTORS COMPANY
  1. GM Duns Number
  2. Broadcast Code
  3. VPPS Code
  4. 2D Barcode
  5. Build Number - Per Day
  6. Model Type
  7. Julian Date
  8. Build Year
  9. Shift Number
  10. Line Number
  11. GM Assembly Part Number
