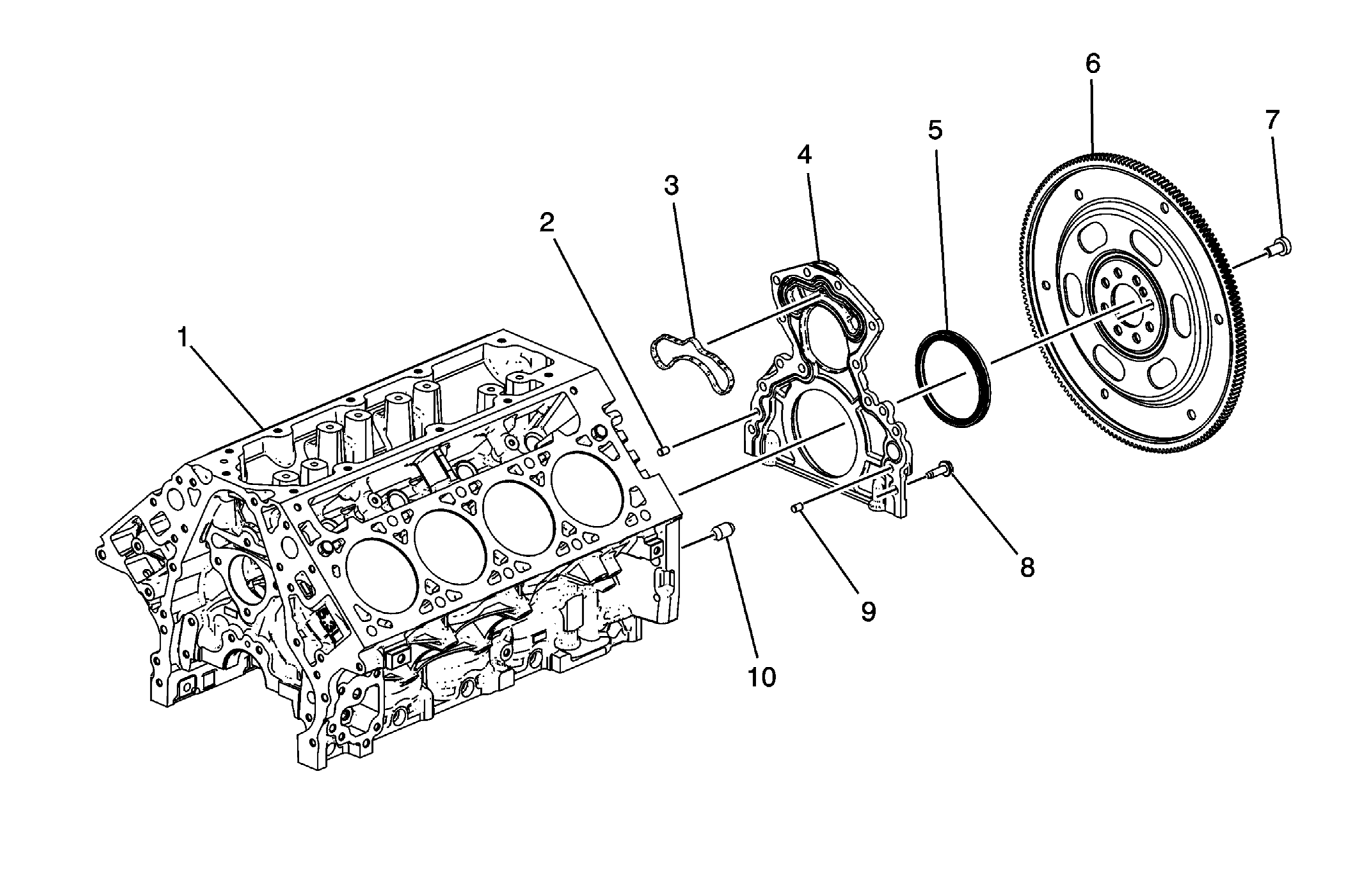

Rear of Engine
| Callout | Component Name |
|---|---|
| 1 | Engine Block |
| 2 | Crankshaft Rear Oil Seal Housing Locating Pin |
| 3 | Crankshaft Rear Oil Seal Housing Gasket |
| 4 | Crankshaft Rear Oil Seal Housing |
| 5 | Crankshaft Rear Oil Seal |
| 6 | Automatic Transmission Flex Plate |
| 7 | Automatic Transmission Flex Plate Bolt |
| 8 | Crankshaft Rear Oil Seal Housing Bolt |
| 9 | Crankshaft Rear Oil Seal Housing Locating Pin |
| 10 | Transmission Locating Pin |
