Intake Manifold and Components

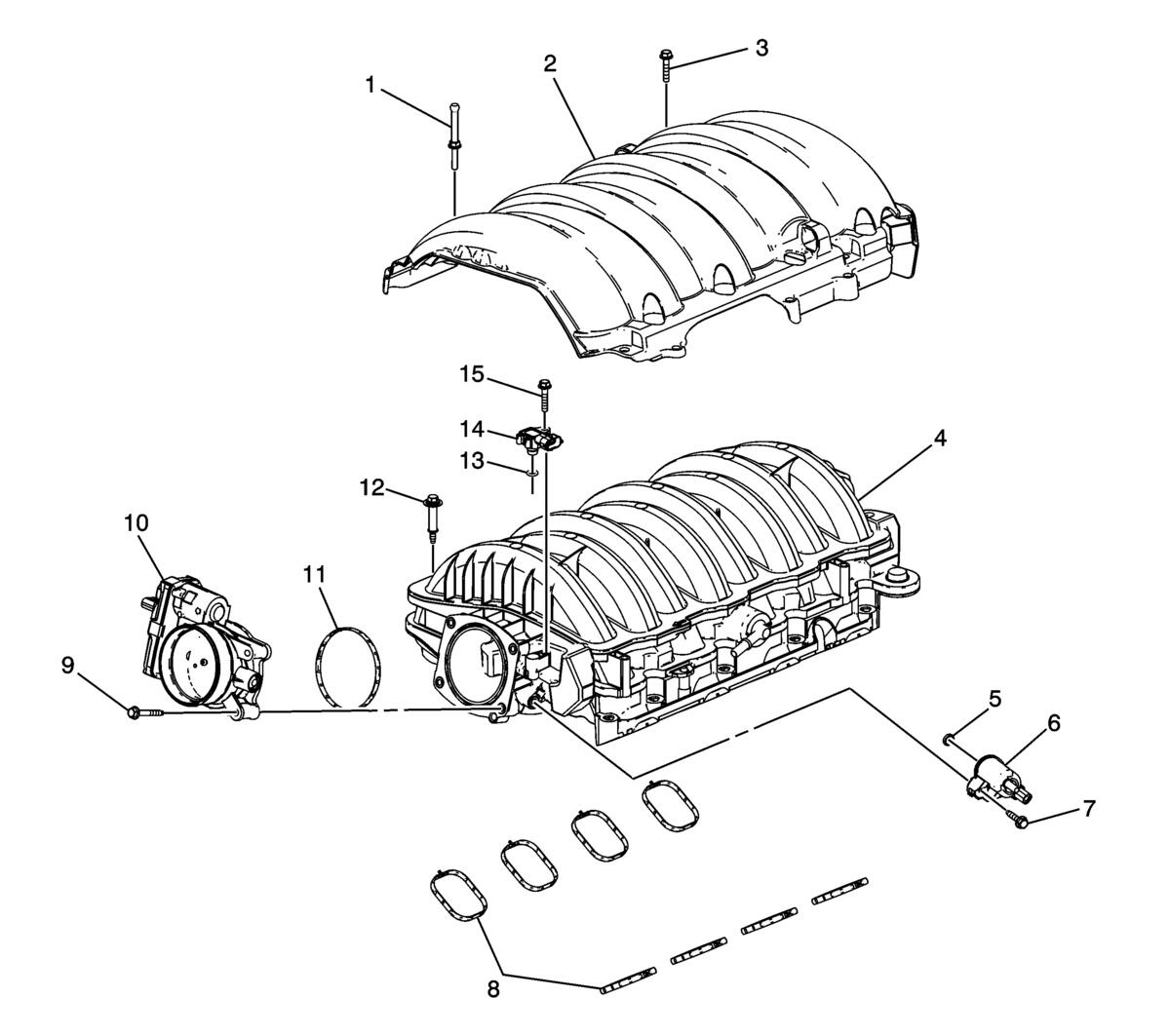

Fig 1: Exploded View Of Intake Manifold And Components
GM2865175Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Cover Stud
2 Intake Manifold Cover Assembly
3 Intake Manifold Cover Assembly Bolt
4 Intake Manifold Assembly
5 EVAP Emission Canister Purge Valve Seal
6 EVAP Emission Canister Purge Valve
7 EVAP Emission Canister Purge Valve Bolt
8 Intake Manifold Gasket
9 Throttle Body Bolt
10 Throttle Body Assembly
11 Throttle Body Gasket
12 Intake Manifold Bolt
13 MAP Sensor Seal
14 MAP Sensor
15 MAP Sensor Bolt
