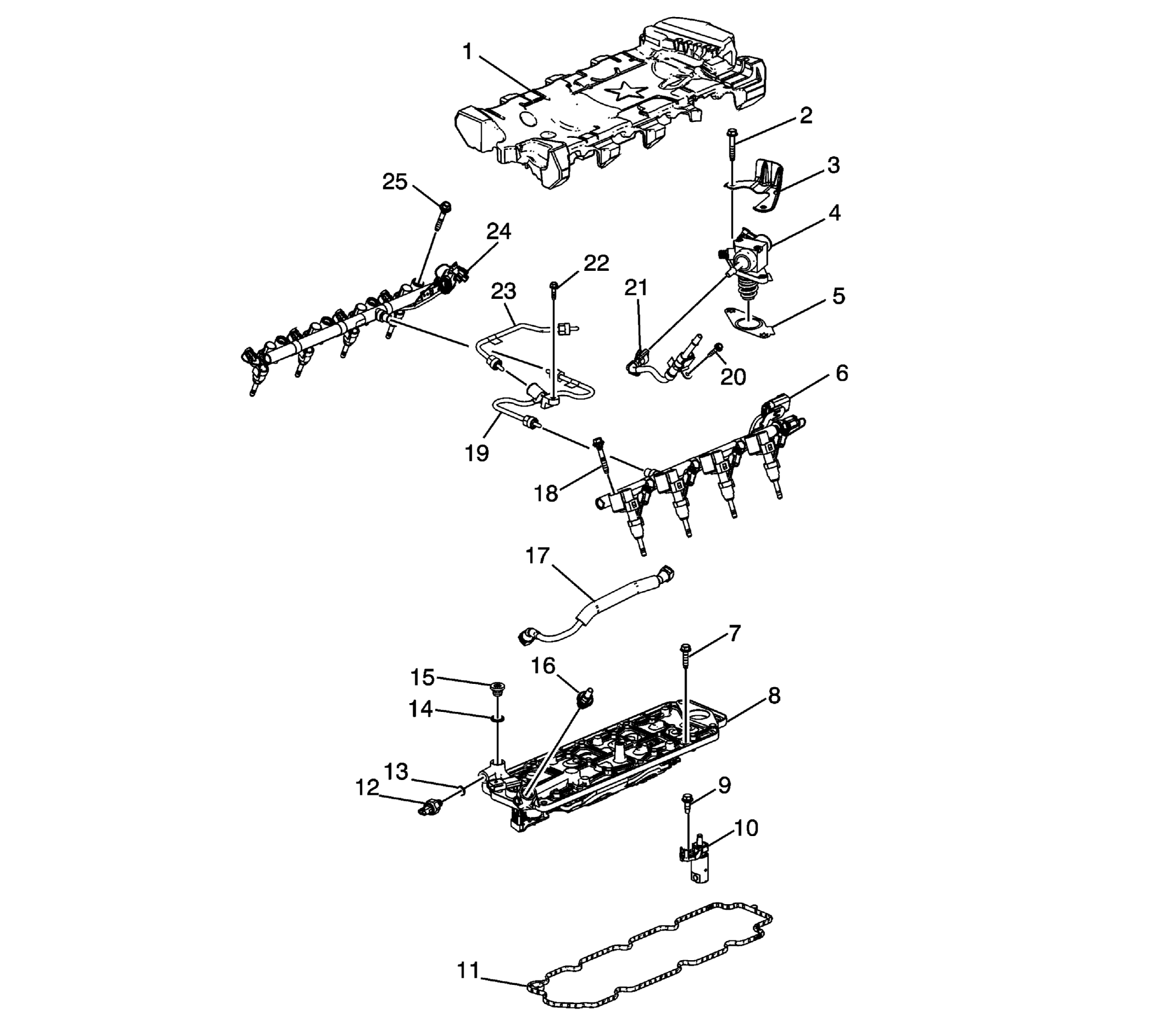

| 1 |
Fuel Pump Insulator |
| 2 |
Fuel Pump Bolt |
| 3 |
Fuel Pump Cover |
| 4 |
Fuel Pump Assembly |
| 5 |
Fuel Pump Gasket |
| 6 |
Direct Fuel Injection Fuel Rail Assembly - Left Side |
| 7 |
Valve Lifter Oil Manifold Bolt |
| 8 |
Valve Lifter Oil Manifold Assembly |
| 9 |
Valve Lifter Follower Guide Assembly Bolt |
| 10 |
Valve Lifter Follower Guide Assembly |
| 11 |
Valve Lifter Oil Manifold Gasket |
| 12 |
Engine Oil Pressure Sensor Assembly |
| 13 |
Engine Oil Pressure Sensor Assembly Seal |
| 14 |
Valve Lifter Oil Manifold Plug Seal |
| 15 |
Valve Lifter Oil Manifold Plug |
| 16 |
PCV Assembly |
| 17 |
PCV Pipe Assembly |
| 18 |
Fuel Injection Fuel Rail Bolt |
| 19 |
Fuel Feed Intermediate Pipe |
| 20 |
Fuel Feed Pipe Bolt |
| 21 |
Fuel Feed Pipe Assembly |
| 22 |
Fuel Feed Intermediate Pipe Bolt |
| 23 |
Fuel Feed Intermediate Pipe |
| 24 |
Direct Fuel Injection Fuel Rail Assembly - Right Side |
| 25 |
Fuel Injection Fuel Rail Bolt |
