Front of Engine

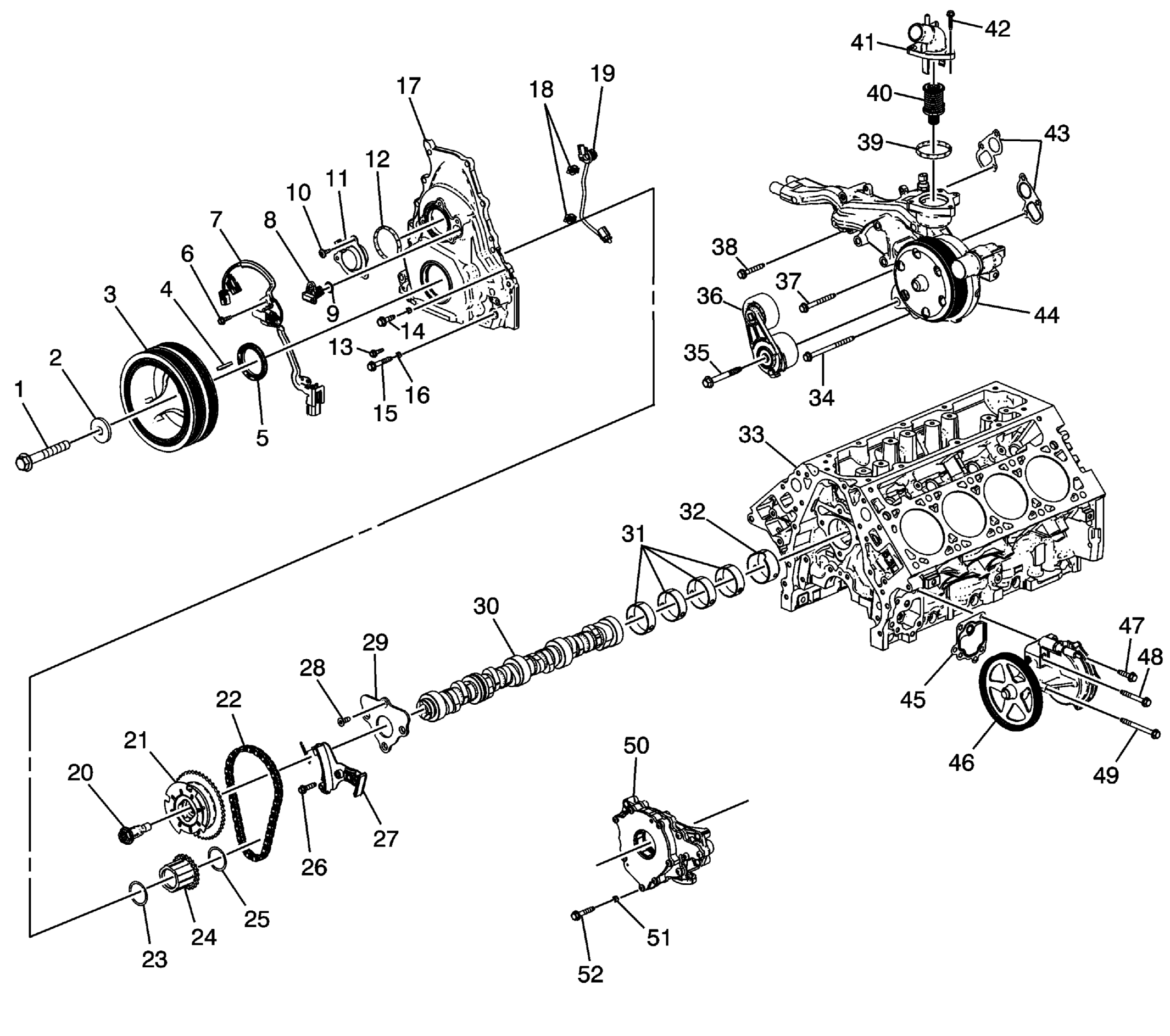

Fig 1: Exploded View Of Front of Engine

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Crankshaft Balancer Bolt
2	Crankshaft Balancer Bolt Washer
3	Crankshaft Balancer Assembly
4	Crankshaft Balancer Key
5	Crankshaft Front Oil Seal
6	Camshaft Position Sensor Wire Assembly Bracket Bolt
7	Camshaft Position Sensor Wire Assembly
8	Camshaft Position Sensor Assembly
9	Camshaft Position Sensor Seal
10	Camshaft Position Actuator Magnet Bolt
11	Camshaft Position Actuator Magnet
12	Camshaft Position Actuator Magnet Gasket
13	Camshaft Position Sensor Wire Assembly Bracket Bolt
14	Engine Front Cover Bolt
15	Engine Front Cover Bolt
16	Engine Front Cover Bolt Retainer
17	Engine Front Cover Assembly
18	Oil Pump Flow Control Solenoid Valve Wire Clip
19	Oil Pump Flow Control Solenoid Valve Wire
20	Camshaft Position Actuator Solenoid Valve
21	Camshaft Position Actuator Assembly
22	Timing Chain Assembly
23	Crankshaft Sprocket Washer
24	Crankshaft Sprocket Assembly
25	Crankshaft Sprocket Washer
26	Timing Chain Tensioner Bolt
27	Timing Chain Tensioner Kit
28	Camshaft Retainer Bolt
29	Camshaft Retainer
30	Camshaft Assembly
31	Camshaft Bearings
32	Camshaft Bearing
33	Engine Block Assembly
34	Engine Coolant Manifold Bolt
35	Drive Belt Tensioner Bolt
36	Drive Belt Tensioner
37	Engine Coolant Manifold Bolt
38	Engine Coolant Manifold Bolt
39	Engine Coolant Thermostat Housing Gasket
40	Engine Coolant Thermostat Assembly
41	Engine Coolant Thermostat Housing
42	Engine Coolant Thermostat Housing Bolt
43	Engine Coolant Manifold Gasket
44	Engine Coolant Manifold Assembly
45	Vacuum Pump Gasket
46	Vacuum Pump Assembly
47	Vacuum Pump Bolt
48	Vacuum Pump Bolt
49	Vacuum Pump Bolt
50	Oil Pump Assembly
51	Oil Pump Bolt Retainer
52	Oil Pump Bolt
