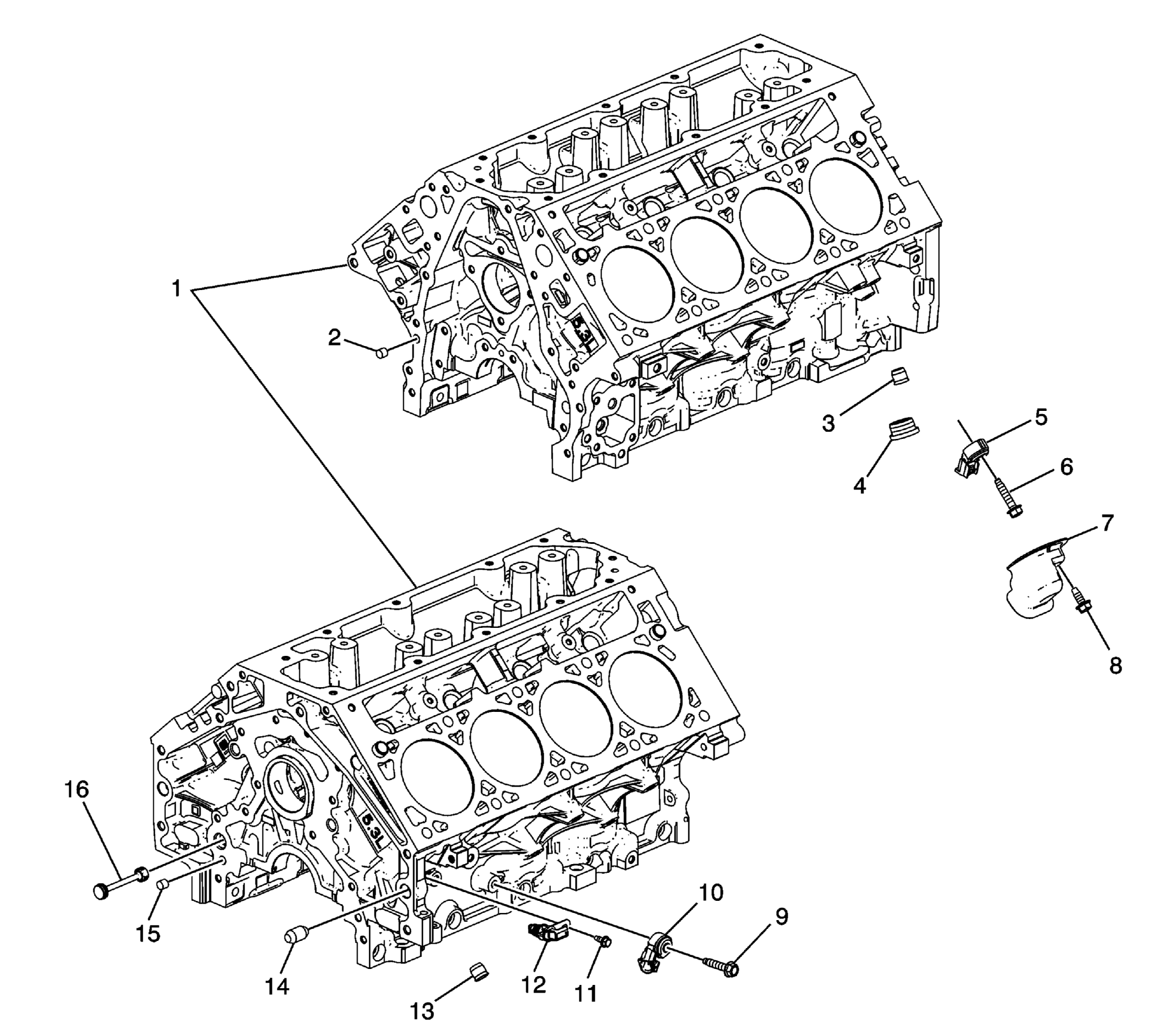

Engine Block Plugs/Sensors
| Callout | Component Name |
|---|---|
| 1 | Engine Block |
| 2 | Engine Front Cover Locating Pin |
| 3 | Engine Block Plug |
| 4 | Engine Block Plug |
| 5 | Knock Sensor Assembly |
| 6 | Knock Sensor Bolt |
| 7 | Knock Sensor Shield |
| 8 | Knock Sensor Shield Bolt |
| 9 | Knock Sensor Bolt |
| 10 | Knock Sensor Assembly |
| 11 | Crankshaft Position Sensor Bolt |
| 12 | Crankshaft Position Sensor Assembly |
| 13 | Engine Block Plug |
| 14 | Transmission Locating Pin |
| 15 | Crankshaft Rear Oil Housing Locating Pin |
| 16 | Engine Block Oil Gallery Plug |
