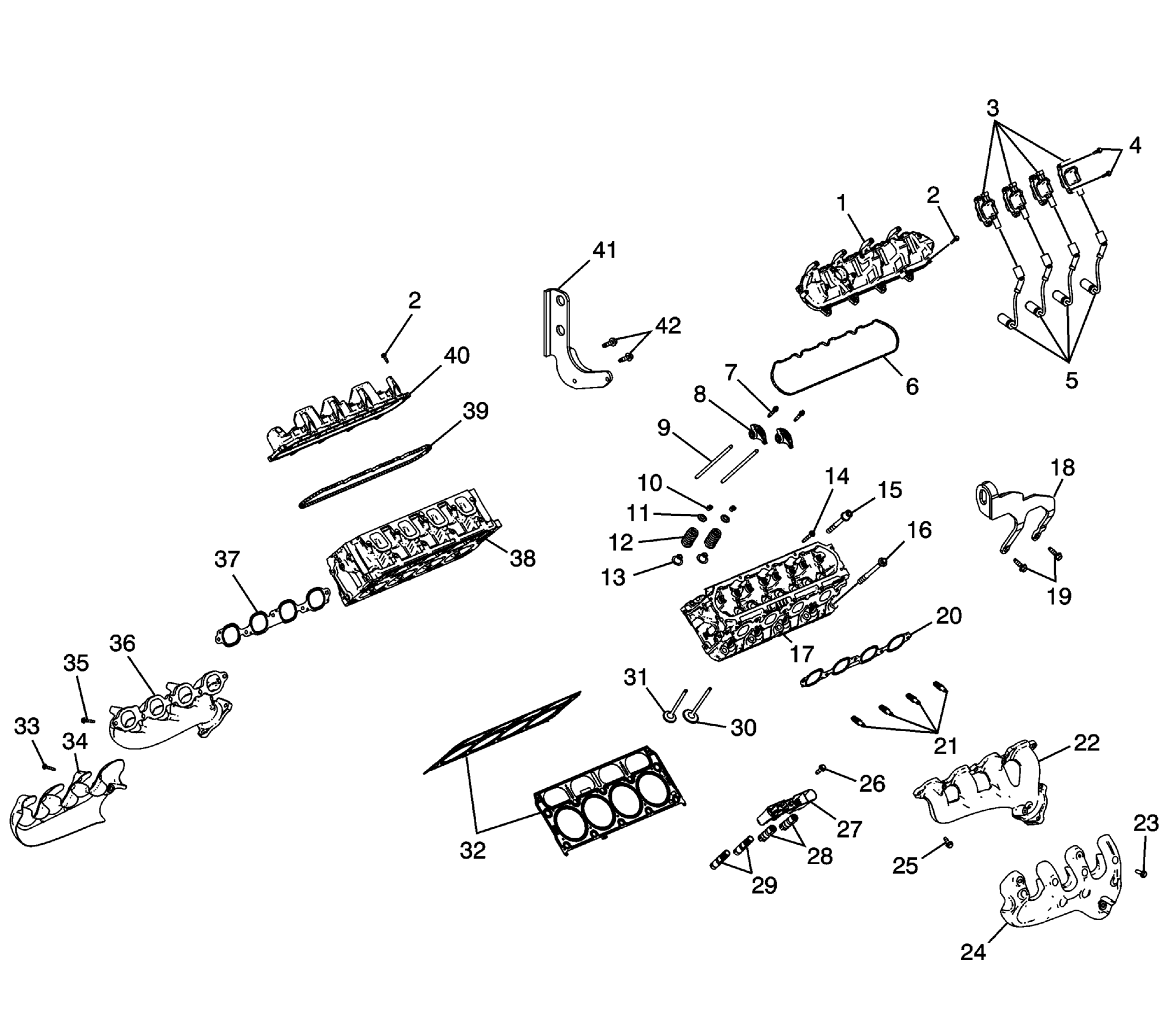

| 1 |
Valve Rocker Arm Cover |
| 2 |
Valve Rocker Arm Cover Bolt |
| 3 |
Ignition Coil Assembly |
| 4 |
Ignition Coil Bolt |
| 5 |
Spark Plug Wire Assembly |
| 6 |
Valve Rocker Arm Cover Gasket |
| 7 |
Valve Rocker Arm Pivot Support Bolt |
| 8 |
Valve Rocker Arm Assembly |
| 9 |
Valve Push Rod Assembly |
| 10 |
Valve Stem Key |
| 11 |
Valve Spring Cap |
| 12 |
Valve Spring |
| 13 |
Valve Stem Oil Seal |
| 14 |
Cylinder Head Bolt |
| 15 |
Cylinder Head Bolt |
| 16 |
Cylinder Head Bolt |
| 17 |
Cylinder Head |
| 18 |
Engine Lift Front Bracket |
| 19 |
Engine Lift Front Bracket Bolt |
| 20 |
Exhaust Manifold Gasket |
| 21 |
Spark Plug Assembly |
| 22 |
Exhaust Manifold Assembly - Left Side |
| 23 |
Exhaust Manifold Heat Shield Bolt |
| 24 |
Exhaust Manifold Heat Shield |
| 25 |
Exhaust Manifold Bolt |
| 26 |
Valve Lifter Guide Bolt |
| 27 |
Valve Lifter Guide |
| 28 |
Valve Lifter |
| 29 |
Valve Lifter |
| 30 |
Exhaust Valve |
| 31 |
Intake Valve |
| 32 |
Cylinder Head Gasket |
| 33 |
Exhaust Manifold Heat Shield Bolt |
| 34 |
Exhaust Manifold Heat Shield |
| 35 |
Exhaust Manifold Bolt |
| 36 |
Exhaust Manifold Assembly - Right Side |
| 37 |
Exhaust Manifold Gasket |
| 38 |
Cylinder Head |
| 39 |
Valve Rocker Arm Cover Gasket |
| 40 |
Valve Rocker Arm Cover |
| 41 |
Engine Lift Rear Bracket |
| 42 |
Engine Lift Rear Bracket Bolt |
