Tow Vehicle Electrical Receptacle Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia trailer hitch access hole cover. Refer to Rear Bumper Fascia Trailer Hitch Access Hole Cover Replacement (Cadillac, GMC)Rear Bumper Fascia Trailer Hitch Access Hole Cover Replacement (Chevrolet) |
|

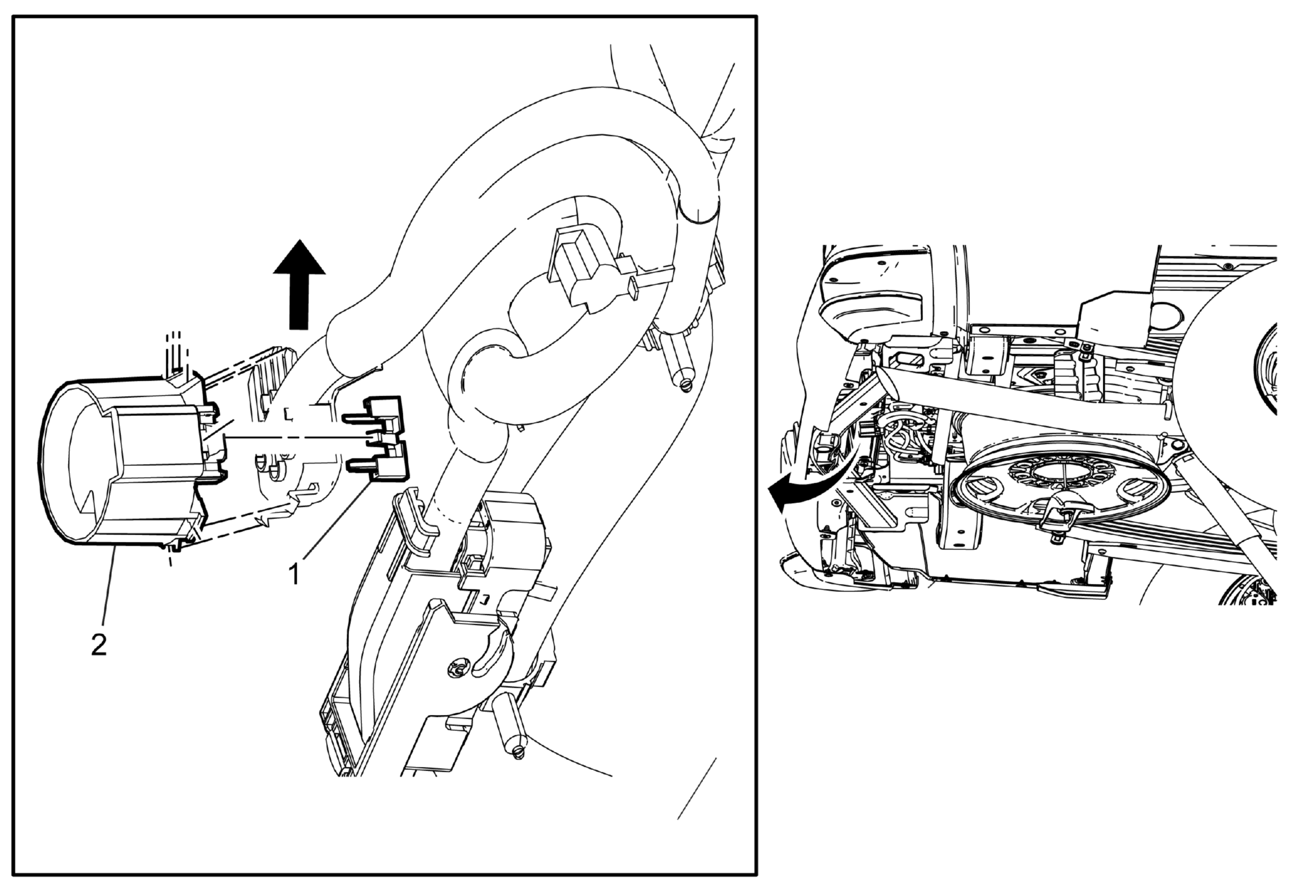

| 1 | Tow Vehicle Electrical Receptacle Lock |
| 2 | Tow Vehicle Electrical Receptacle Procedure Release the two lower retainers tabs. Rotate the bottom of tow vehicle electrical receptacle slightly up wards and push the receptacle off the upper connector tabs. |
