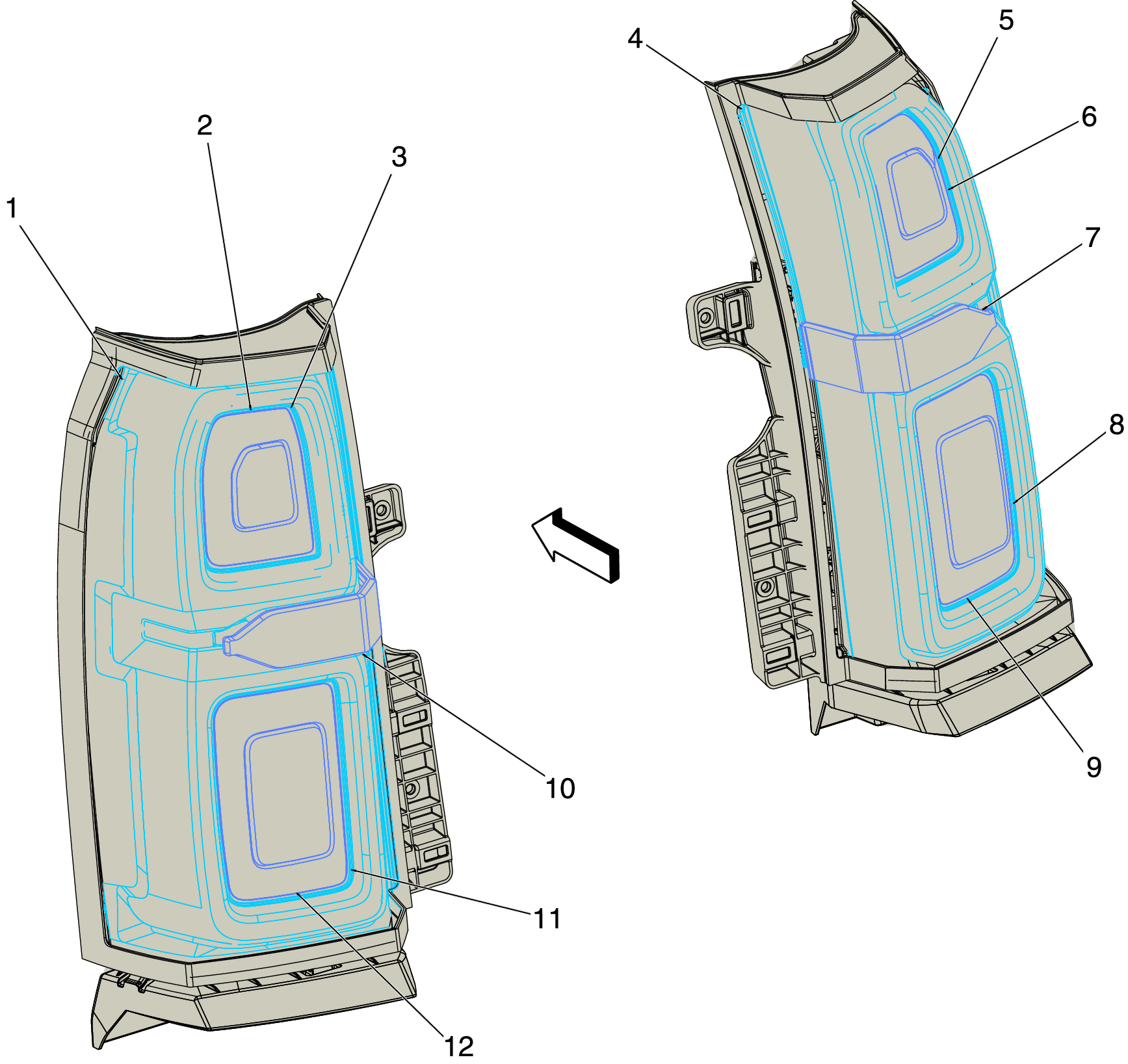

Tail Lamp Components (X88)
Tail Lamp Components (X88)
| Items |
|---|
| 1. E5E Tail Lamp - Left |
| 2. E5AS Stop/Turn Signal Lamp - Left Upper (X88 without T89) |
| 3. E5L Stop Lamp - Left (Z88, Z75, or X88 with T89) |
| 4. E5F Tail Lamp - Right |
| 5. E5AU Stop/Turn Signal Lamp - Right Upper (X88 without T89) |
| 6. E5R Stop Lamp - Right (Z88, Z75, or X88 with T89) |
| 7. E5B Backup Lamp - Right |
| 8. E5AV Stop/Turn Signal Lamp - Right Lower (X88 without T89) |
| 9. E4RR Turn Signal Lamp - Right Rear (Z88, Z75, or X88 with T89) |
| 10. E5A Backup Lamp - Left |
| 11. E4LR Turn Signal Lamp - Left Rear (Z88, Z75, or X88 with T89) |
| 12. E5AT Stop/Turn Signal Lamp - Left Lower (X88 without T89) |
