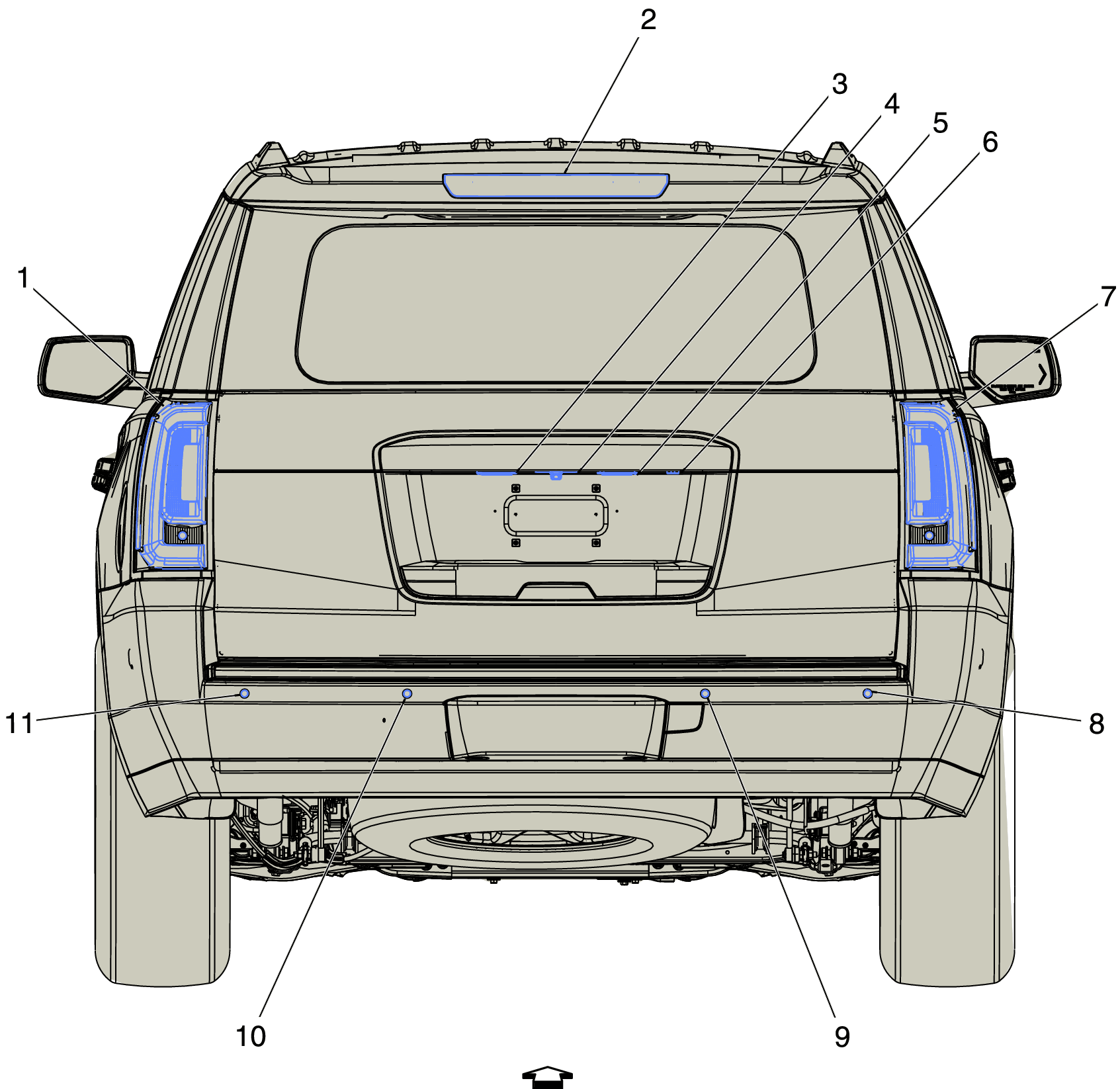

Rear Of Vehicle Components (Z88)
Rear Of Vehicle Components (Z88)
| Items |
|---|
| 1. E42L Tail Lamp Assembly - Left |
| 2. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 3. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 4. B87 Rearview Camera B87 Rearview Camera (DRZ)B87 Rearview Camera (UVC)B87 Rearview Camera (UVH) |
| 5. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 6. S46B Liftgate Unlatch Switch (TB4) S46B Liftgate Unlatch Switch |
| 7. E42R Tail Lamp Assembly - Right |
| 8. B306H Parking Assist Sensor - Rear Right Outer (UD5 or UD7) B306H Parking Assist Sensor - Rear Right Outer |
| 9. B306G Parking Assist Sensor - Rear Right Middle (UD5 or UD7) B306G Parking Assist Sensor - Rear Right Middle |
| 10. B306F Parking Assist Sensor - Rear Left Middle (UD5 or UD7) B306F Parking Assist Sensor - Rear Left Middle |
| 11. B306E Parking Assist Sensor - Rear Left Outer (UD5 or UD7) B306E Parking Assist Sensor - Rear Left Outer |
