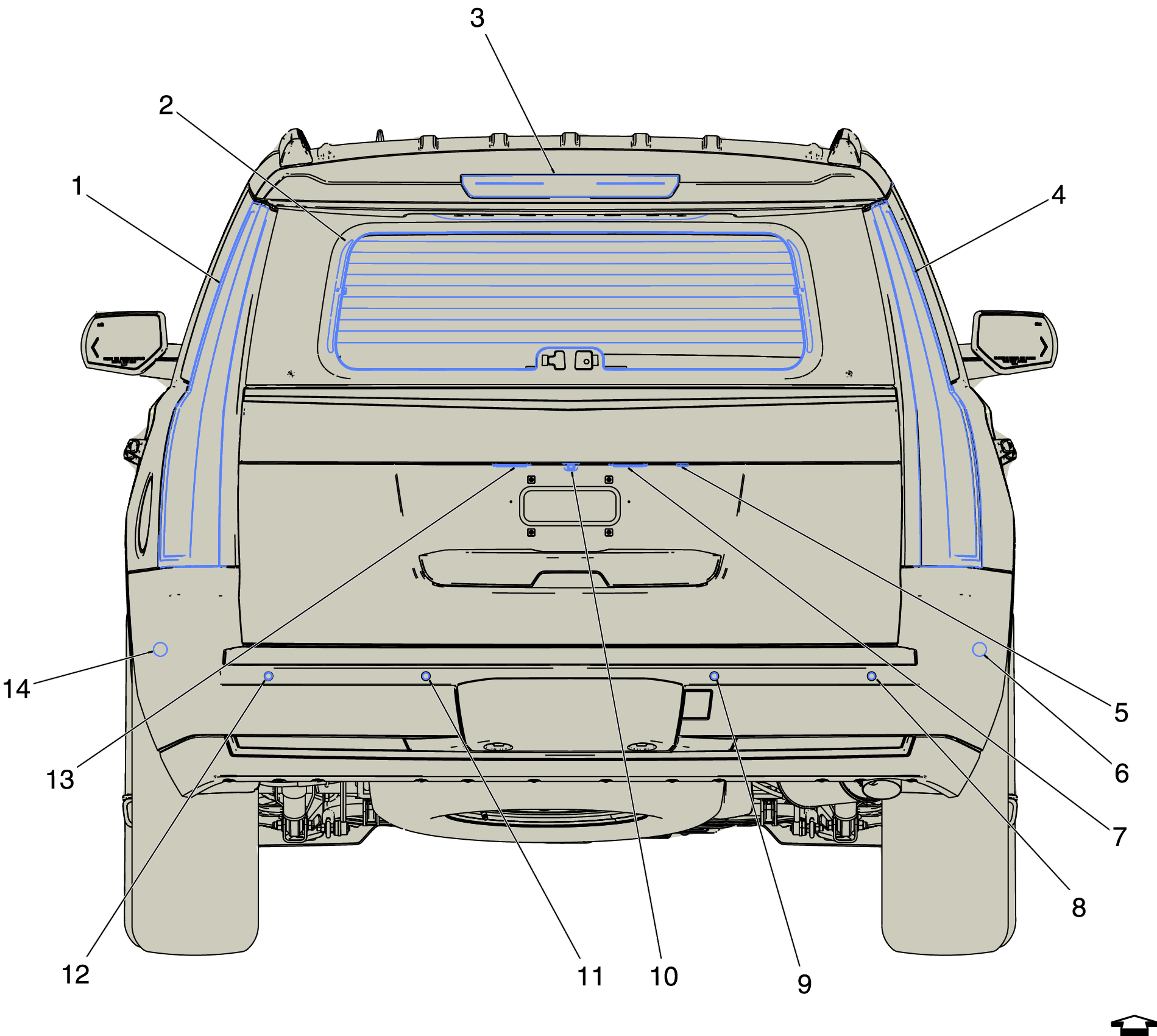

Rear Of Vehicle Components (Z75)
Rear Of Vehicle Components (Z75)
| Items |
|---|
| 1. E42L Tail Lamp Assembly - Left |
| 2. E18 Rear Defogger Grid E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2 |
| 3. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 4. E42R Tail Lamp Assembly - Right |
| 5. S141 Liftgate Window Unlatch Switch S141 Liftgate Window Unlatch Switch |
| 6. B306N Parking Assist Sensor - Side Right Rear (UKG) B306N Parking Assist Sensor - Side Right Rear |
| 7. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 8. B306H Parking Assist Sensor - Rear Right Outer (UD5 or UD7) B306H Parking Assist Sensor - Rear Right Outer |
| 9. B306G Parking Assist Sensor - Rear Right Middle (UD5 or UD7) B306G Parking Assist Sensor - Rear Right Middle |
| 10. B87 Rearview Camera B87 Rearview Camera (DRZ)B87 Rearview Camera (UVC)B87 Rearview Camera (UVH) |
| 11. B306F Parking Assist Sensor - Rear Left Middle (UD5 or UD7) B306F Parking Assist Sensor - Rear Left Middle |
| 12. B306E Parking Assist Sensor - Rear Left Outer (UD5 or UD7) B306E Parking Assist Sensor - Rear Left Outer |
| 13. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 14. B306M Parking Assist Sensor - Side Left Rear (UKG) B306M Parking Assist Sensor - Side Left Rear |
