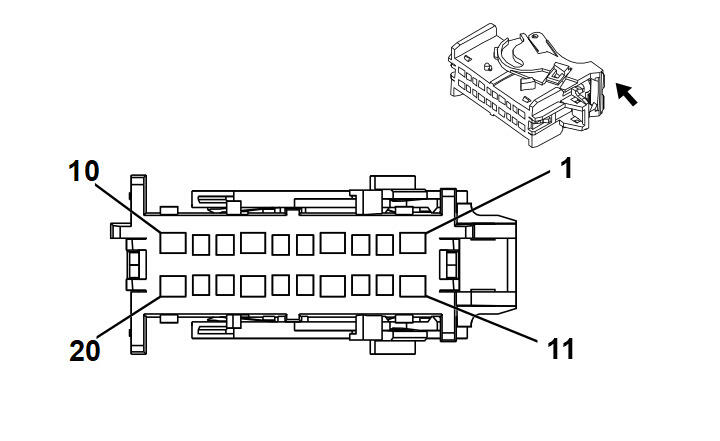

X61A Junction Block - Instrument Panel X8

Connector Part Information Harness Type: Brake Clutch Jumper OEM Connector: 15547106 Service Connector: Service by Harness - See Part Catalog Description: 20-Way F 1.5, 2.8 OCS Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-2A (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-35 (VT)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 7	-	-	-	Not Occupied	-	-
8	0.5	WH/GN	526	Stop Lamp Switch Signal	I	-
9	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
10	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	II	-
11	-	-	-	Not Occupied	-	-
12	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
13	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
14	0.5	WH/RD	6207	Memory Sensor High Reference	II	-
15	0.5	BU	5952	Adjustable Pedal Position Sensor Brake Signal	I	-
16	1.5	YE	5129	Adjustable Pedal Actuator Rearward Control	I	-
17	0.5	BK/GY	6206	Memory Sensor Low Reference	II	-
18	1.5	GN/VT	5130	Adjustable Pedal Actuator Forward Control	I	-
19	0.5	BK/GN	552	Sensor Low Reference	I	-
20	0.5	GY/RD	598	5V Reference	II	-
