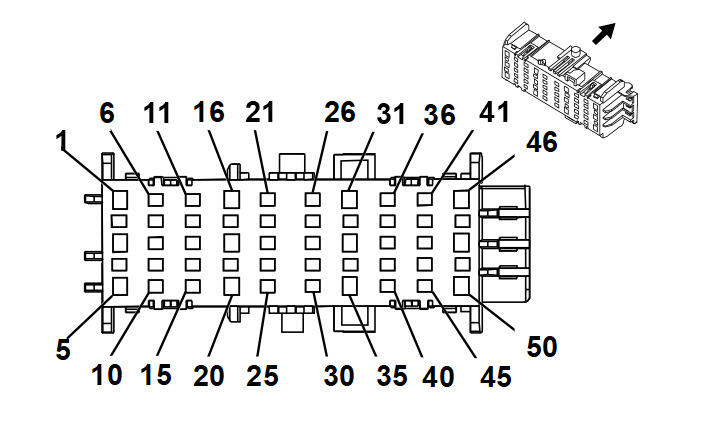

X61A Junction Block - Instrument Panel X5

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 33115110
Service Connector: 19329465
Description: 50-Way F 1.5, 2.8 OCS Series (NA)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19301761	J-35616-35 (VT)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
II	19301767	J-35616-14 (GN)	J-38125-557	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
2	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	II	-
3	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
4 - 5	-	-	-	Not Occupied	-	-
6	0.35	GY	5697	Child Lockout Indicator Control	II	-
7	0.5	BN	7634	Integrated Trailer Brake Controller Redundant Manual Apply Signal	II	-
8	0.35	BN/YE	780	Driver Door Lock Switch Lock Signal	II	-
9	0.35	VT	185	Low Washer Fluid Indicator Control	II	-
10	0.5	RD/WH	961	Configurable Provision Relay 1 Control	II	-
11	0.5	GN/GY	963	Configurable Provision Relay 3 Control	II	-
12	0.5	YE	7635	Integrated Trailer Brake Controller Manual Apply Signal	II	-
13	0.35	BN/WH	781	Driver Door Lock Switch Unlock Signal	II	-
14	0.5	BK/BN	7631	Integrated Trailer Brake Controller Switch Low Reference	II	-
15	0.5	BU/RD	7632	Integrated Trailer Brake Controller Switch 5V Reference	II	-
16	-	-	-	Not Occupied	-	-
17	0.5	YE/WH	962	Configurable Provision Relay 2 Control	II	-
18	0.5	VT/BN	300	Run Ignition 3 Voltage	I	-
19	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	II	-
20 - 21	-	-	-	Not Occupied	-	-
22	0.5	BU/VT	1134	Park Brake Switch Signal	II	-
23	0.5	WH/BU	964	Configurable Provision Relay 4 Control	II	-
24	-	-	-	Not Occupied	-	-
25	0.35	WH/GY	5285	Adjustable Pedal Switch Rearward Signal	II	-
26	0.35	GN/BN	5852	Rear Park Assist LED Disable Signal	II	-
27	0.5	WH/BU	3691	Trailer Brake Apply Signal	II	-
28	0.35	GN/VT	1601	Steering Column Lock Signal	II	-
29	0.35	GN/GY	5286	Adjustable Pedal Switch Forward Signal	II	-
30	0.5	GN/BK	7633	Integrated Trailer Brake Controller User Gain Signal	II	-
31	-	-	-	Not Occupied	-	-
32	0.5	YE/WH	816	Brake Transmission Shift Interlock Solenoid Control	II	-
33	-	-	-	Not Occupied	-	-
34	0.5	WH	6816	Indicator Dimming Control	II	-
35 - 36	-	-	-	Not Occupied	-	-
37	0.35	WH	6816	Indicator Dimming Control	II	-
38	0.35	WH	6816	Indicator Dimming Control	II	-
39	0.5	WH	6816	Indicator Dimming Control	II	-
40 - 44	-	-	-	Not Occupied	-	-
45	0.35	GY/GN	2555	Rear Park Assist Disable Signal	II	-
46 - 50	-	-	-	Not Occupied	-	-
