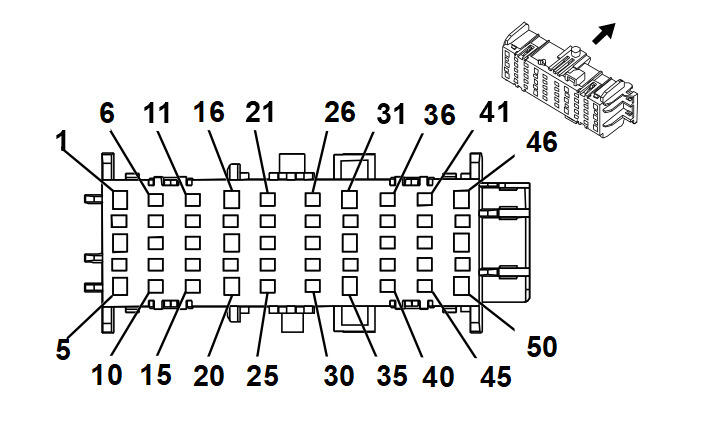

X61A Junction Block - Instrument Panel X3
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13578891 | J-35616-2A (GY) | J-38125-11A | Not Available | Not Available | Not Available | Not Available |
| II | 19301752 | J-35616-35 (VT) | J-38125-11A | Not Available | Not Available | Not Available | Not Available |
| III | 19301761 | J-35616-35 (VT) | J-38125-11A | Not Available | Not Available | Not Available | Not Available |
| IV | 19301767 | J-35616-2A (GY) | J-38125-560 | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 - 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.35 | RD/GN | 3140 | Battery Positive Voltage | III | - |
| 4 | 0.35 | BU | 2307 | Passenger Air Bag On Indicator Control | I | - |
| 5 - 7 | - | - | - | Not Occupied | - | - |
| 8 | 0.35 | YE/WH | 1690 | Automatic Day/Night Mirror Signal | IV | - |
| 9 | 0.35 | BK/YE | 1691 | Automatic Day/Night Mirror Low Reference | IV | - |
| 10 - 12 | - | - | - | Not Occupied | - | - |
| 13 | 0.35 | GN/RD | 24 | Backup Lamp Control | IV | - |
| 14 - 16 | - | - | - | Not Occupied | - | - |
| 17 | 0.35 | GN/BK | 2515 | Keypad Control | IV | - |
| 18 | 0.35 | GN | 6112 | Power Lift Gate On/Off Switch Signal | III | - |
| 19 | 0.35 | VT/WH | 5234 | Passenger Seat Belt Indicator Control | I | - |
| 20 | - | - | - | Not Occupied | - | - |
| 21 | 0.35 | GN/BU | 2514 | Keypad Signal | IV | - |
| 22 | 0.35 | YE/BN | 2516 | Keypad Green LED Control | IV | - |
| 23 | - | - | - | Not Occupied | - | - |
| 24 | 0.35 | GN/RD | 2308 | Passenger Air Bag Off Indicator Control | I | - |
| 25 | 0.5 | WH/BN | 6815 | Inadvertent Power Control | IV | - |
| 26 | - | - | - | Not Occupied | - | - |
| 27 | 0.5 | YE | 6817 | LED Backlight Dimming Control | IV | - |
| 28 | 0.35 | GY/BU | 156 | Courtesy Lamp Switch Signal | I | - |
| 29 | 0.5 | GY | 157 | Interior Lamp Control | IV | - |
| 30 - 35 | - | - | - | Not Occupied | - | - |
| 36 | 0.35 | BN/WH | 2517 | Keypad Red LED Control | IV | - |
| 37 | - | - | - | Not Occupied | - | - |
| 38 | 0.35 | GY/BK | 6113 | Rear Lift Gate Open/Close Switch Signal | I | - |
| 39 - 40 | - | - | - | Not Occupied | - | - |
| 41 | 0.35 | GY/GN | 328 | Interior Lamp Defeat Switch Signal | I | - |
| 42 | 0.35 0.35 |
VT/GN VT/GN |
7558 7558 |
LED Ambient Lighting Control 2 LED Ambient Lighting Control 2 |
IV I |
- - |
| 43 - 44 | - | - | - | Not Occupied | - | - |
| 45 | 0.35 | GY/WH | 3153 | Lane Departure Warning Disable Switch Signal | IV | - |
| 46 | 2.5 | BK | 1050 | Ground | II | - |
| 47 | 0.35 | GN | 5060 | Low Speed GMLAN Serial Data | IV | - |
| 48 | - | - | - | Not Occupied | - | - |
| 49 | 0.35 | WH | 3152 | Lane Departure Warning Indicator Control | IV | - |
| 50 | - | - | - | Not Occupied | - | - |
