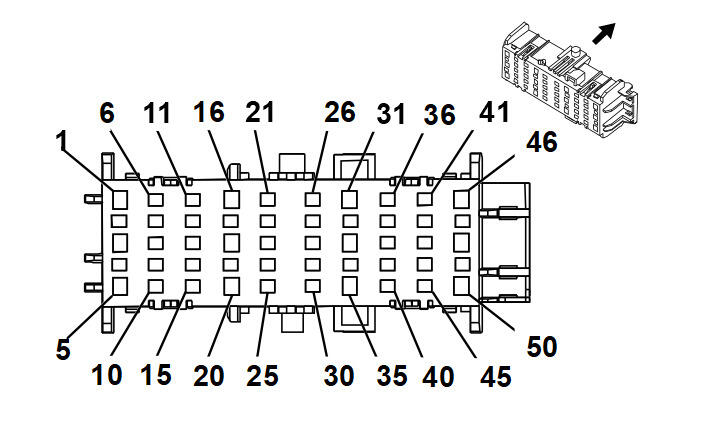

X61A Junction Block - Instrument Panel X1

Connector Part Information

Harness Type: Body
OEM Connector: 33114819
Service Connector: 19301798
Description: 50-Way F 1.5, 2.8 OCS Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19301752	J-35616-35 (VT)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	19301767	J-35616-14 (GN)	J-38125-557	Not Available	Not Available	Not Available	Not Available
III	19301776	J-35616-14 (GN)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	GY/BK	1570	Front Axle Actuator Control	II	-
3 - 10	-	-	-	Not Occupied	-	-
11	0.35	GY/GN	2555	Rear Park Assist Disable Signal	II	-
12 - 15	-	-	-	Not Occupied	-	-
16	2.5	BU	965	Configurable Provision 1 Control	I	-
17	-	-	-	Not Occupied	-	-
18	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	III	-
19	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	II	-
20	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	III	-
21	0.5	RD/WH	961	Configurable Provision Relay 1 Control	II	-
22	0.35	VT	185	Low Washer Fluid Indicator Control	II	-
23	0.35	BN/YE	780	Driver Door Lock Switch Lock Signal	II	-
24	0.5	BN	7634	Integrated Trailer Brake Controller Redundant Manual Apply Signal	II	-
25	0.35	GY	5697	Child Lockout Indicator Control	II	-
26	0.5	BU/RD	7632	Integrated Trailer Brake Controller Switch 5V Reference	II	-
27	0.5	BK/BN	7631	Integrated Trailer Brake Controller Switch Low Reference	II	-
28	0.35	BN/WH	781	Driver Door Lock Switch Unlock Signal	II	-
29	0.5	YE	7635	Integrated Trailer Brake Controller Manual Apply Signal	II	-
30	0.5	GN/GY	963	Configurable Provision Relay 3 Control	II	-
31	2.5	GY/BK	966	Configurable Provision 2 Control	I	-
32	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	II	-
33	0.5	VT/BN	300	Run Ignition 3 Voltage	III	-
34	0.5	YE/WH	962	Configurable Provision Relay 2 Control	II	-
35	2.5	YE/BN	967	Configurable Provision 3 Control	I	-
36	0.35	WH/GY	5285	Adjustable Pedal Switch Rearward Signal	II	-
37	-	-	-	Not Occupied	-	-
38	0.5	WH/BU	964	Configurable Provision Relay 4 Control	II	-
39	1	BU/VT	1134	Park Brake Switch Signal	II	-
40	0.5	GN	5060	Low Speed GMLAN Serial Data	II	-
41	0.5	GN/BK	7633	Integrated Trailer Brake Controller User Gain Signal	II	-
42	0.35	GN/GY	5286	Adjustable Pedal Switch Forward Signal	II	-
43	0.35	GN/VT	1601	Steering Column Lock Signal	II	-
44	0.5	WH/BU	3691	Trailer Brake Apply Signal	II	-
45	0.35	GN/BN	5852	Rear Park Assist LED Disable Signal	II	-
46	0.5	VT/WH	1939	Run/Crank Ignition 1 Voltage	III	-
47	0.5	WH	6816	Indicator Dimming Control	II	-E29-Z75
48	2.5	RD/GN	968	Configurable Provision 4 Control	I	-
49	0.5	YE/WH	816	Brake Transmission Shift Interlock Solenoid Control	II	-
50	2.5	BK	2550	Ground	I	-
