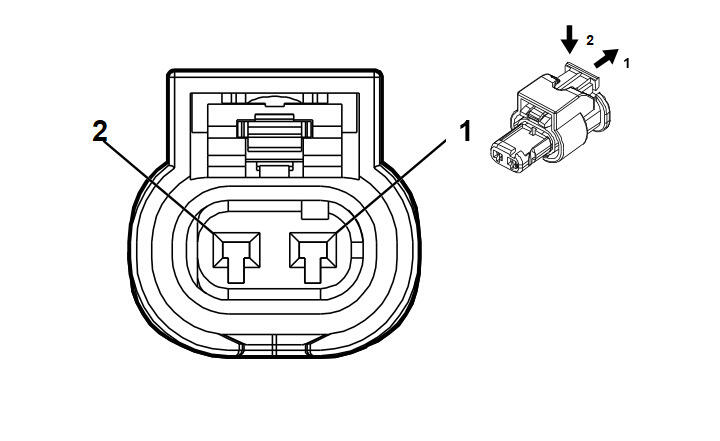

T10J Keyless Entry Antenna - Center Console Front
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13627836
- Service Connector: 13587957
- Description: 2-Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/BK |
3552 |
Passive Start Interior Antenna 1 Signal Hi |
I |
- |
| 2 |
0.35 |
WH |
3553 |
Passive Start Interior Antenna 1 Signal Lo |
I |
- |
