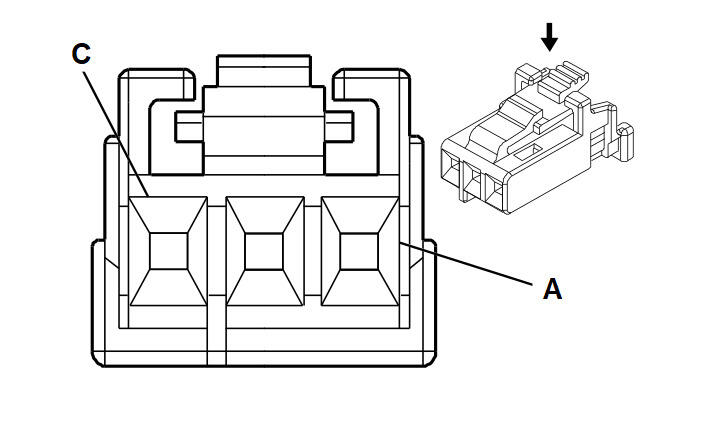

S143R Folding Seat Control Switch - 2nd Row Right
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 15417063
- Service Connector: 88987857
- Description: 3-Way F 0.64 Micro-Pack Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
BN/WH |
6809 |
Right Rear Seat Fold Tumble Control |
I |
- |
| B |
- |
- |
- |
Not Occupied |
- |
- |
| C |
0.5 |
YE/BK |
5813 |
Park Enable Control |
I |
- |
