Installation Procedure

  1. Install the rear brake hose.

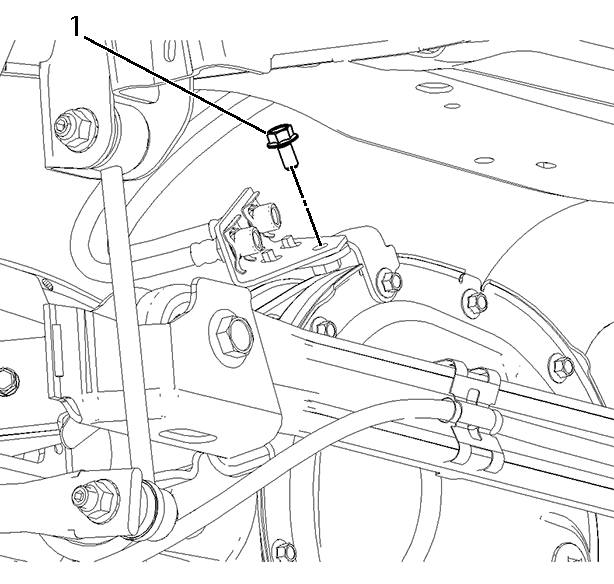

    2. Fig 1: Brake Hose Bracket Bolt
    GM3629922Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the brake hose bracket bolt (1) to the rear axle and tighten to 25 N.m (18 lb ft).

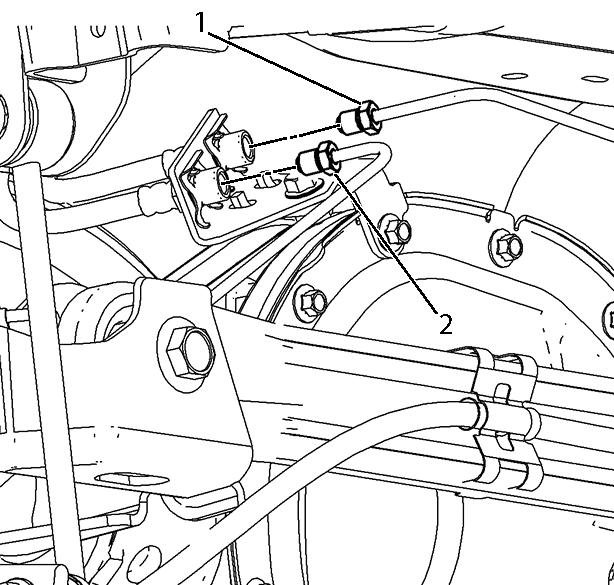

    3. Fig 2: Right And Left Rear Brake Pipe Fitting
    GM3629920Courtesy of GENERAL MOTORS COMPANY
  3. Connect the right rear brake pipe fitting (1) to the rear brake hose and tighten to 25 N.m (18 lb ft).
  4. Connect the left rear brake pipe fitting (2) to the rear brake hose and tighten to 25 N.m (18 lb ft).

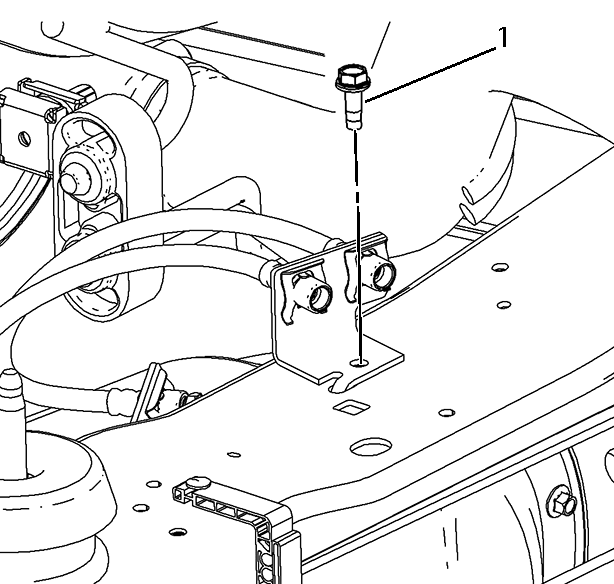

    5. Fig 3: Brake Hose Bracket Bolt
    GM3629917Courtesy of GENERAL MOTORS COMPANY
  5. Install the brake hose bracket bolt (1) to the frame crossmember and tighten to 25 N.m (18 lb ft).

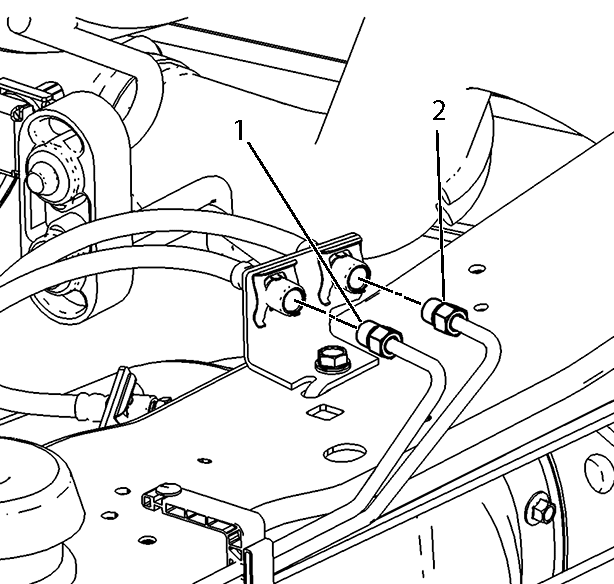

    6. Fig 4: Left And Right Rear Brake Pipe Fitting
    GM3629916Courtesy of GENERAL MOTORS COMPANY
  6. Connect the left rear brake pipe fitting (1) to the rear brake hose and tighten to 25 N.m (18 lb ft).
  7. Connect the right rear brake pipe fitting (2) to the rear brake hose and tighten to 25 N.m (18 lb ft).
  8. Install the spare tire and wheel assembly.
  9. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
