Installation Procedure

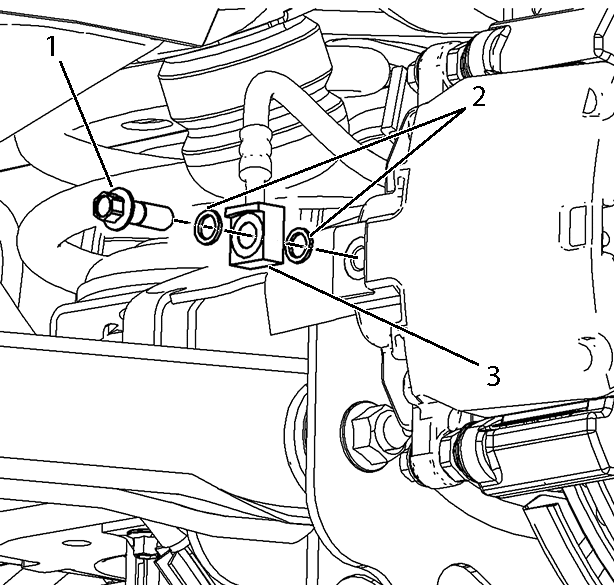

    Fig 1: Brake Hose Fitting Bolt And Gaskets
    GM3629928Courtesy of GENERAL MOTORS COMPANY
  1. Assemble the brake hose fitting bolt (1) with 2 new brake hose fitting gaskets (2) to the brake hose (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).

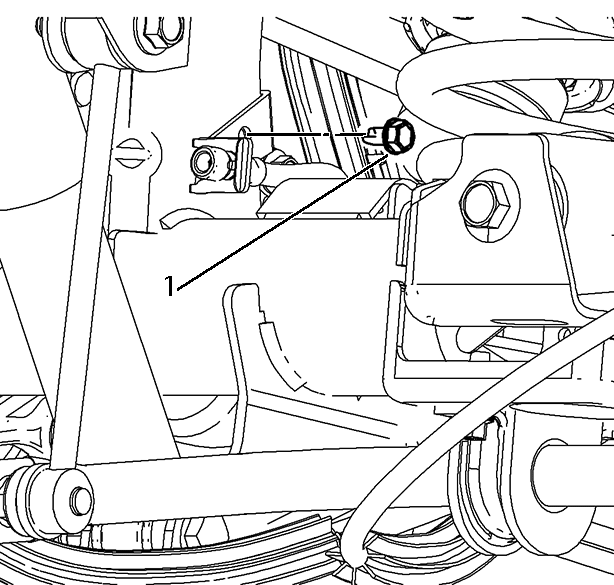

    3. Fig 2: Brake Hose Bracket Bolt
    GM3629926Courtesy of GENERAL MOTORS COMPANY
  3. Install the brake hose bracket bolt (1) and tighten to 9 N.m (80 lb in).

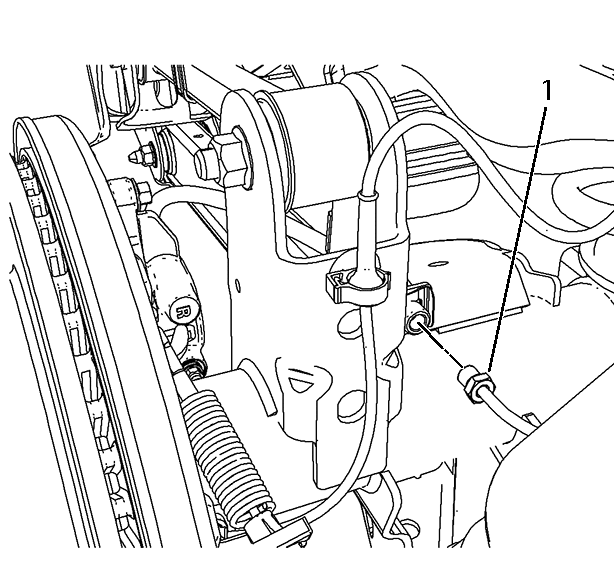

    4. Fig 3: Brake Pipe Fitting
    GM3629925Courtesy of GENERAL MOTORS COMPANY
  4. Install the brake pipe fitting nut (1) and tighten to 25 N.m (18 lb ft).
  5. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (6-Lug Wheel)Tire and Wheel Removal and Installation (8-Lug Wheel) .
