Installation Procedure

  1. Install the power brake booster vacuum pipe assembly to the vehicle.

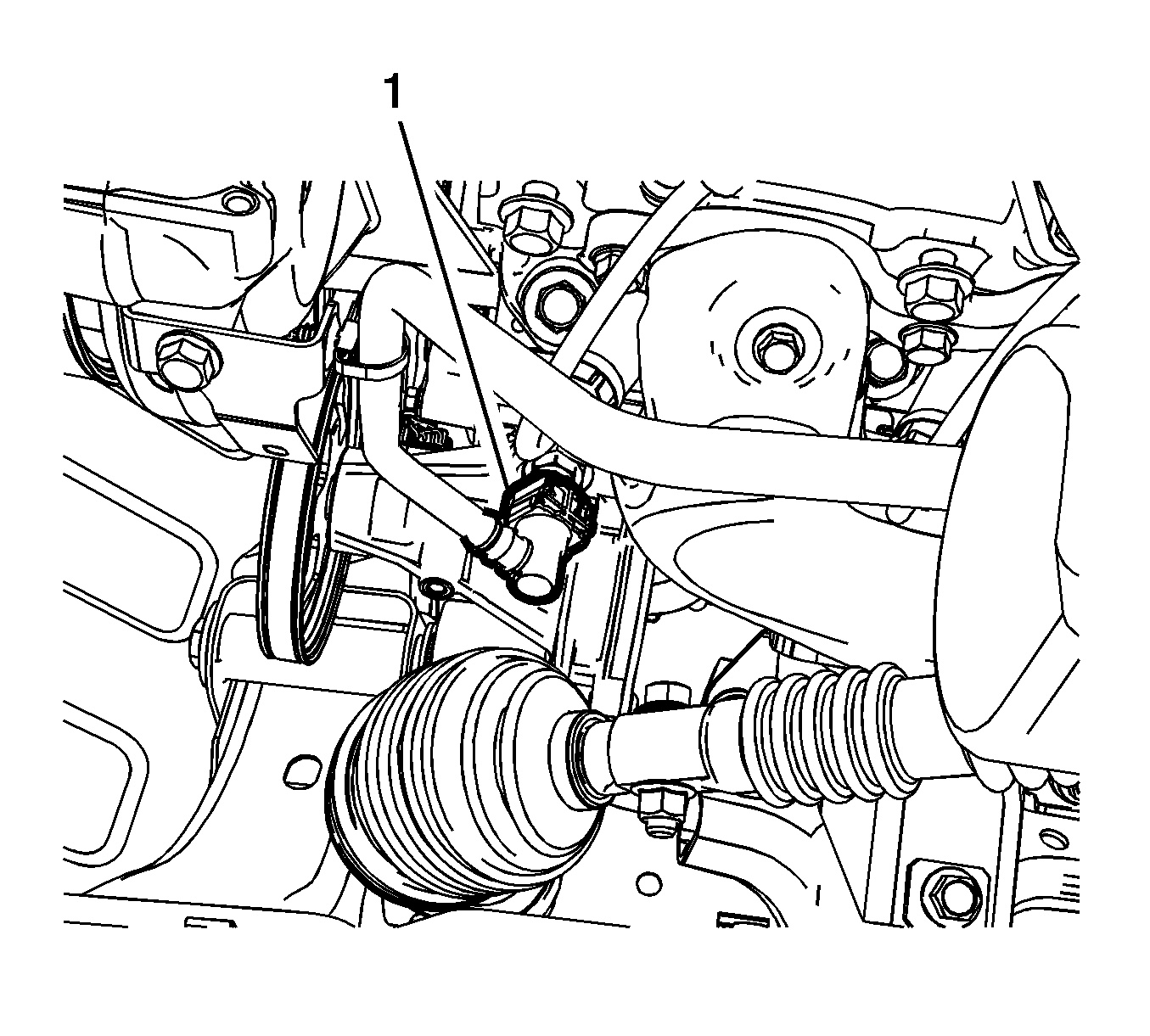

    2. Fig 1: Power Brake Booster Vacuum Pipe Quick Connect
    GM3269845Courtesy of GENERAL MOTORS COMPANY
  2. Connect the power brake booster vacuum pipe quick connect (1) to the vacuum pump port.

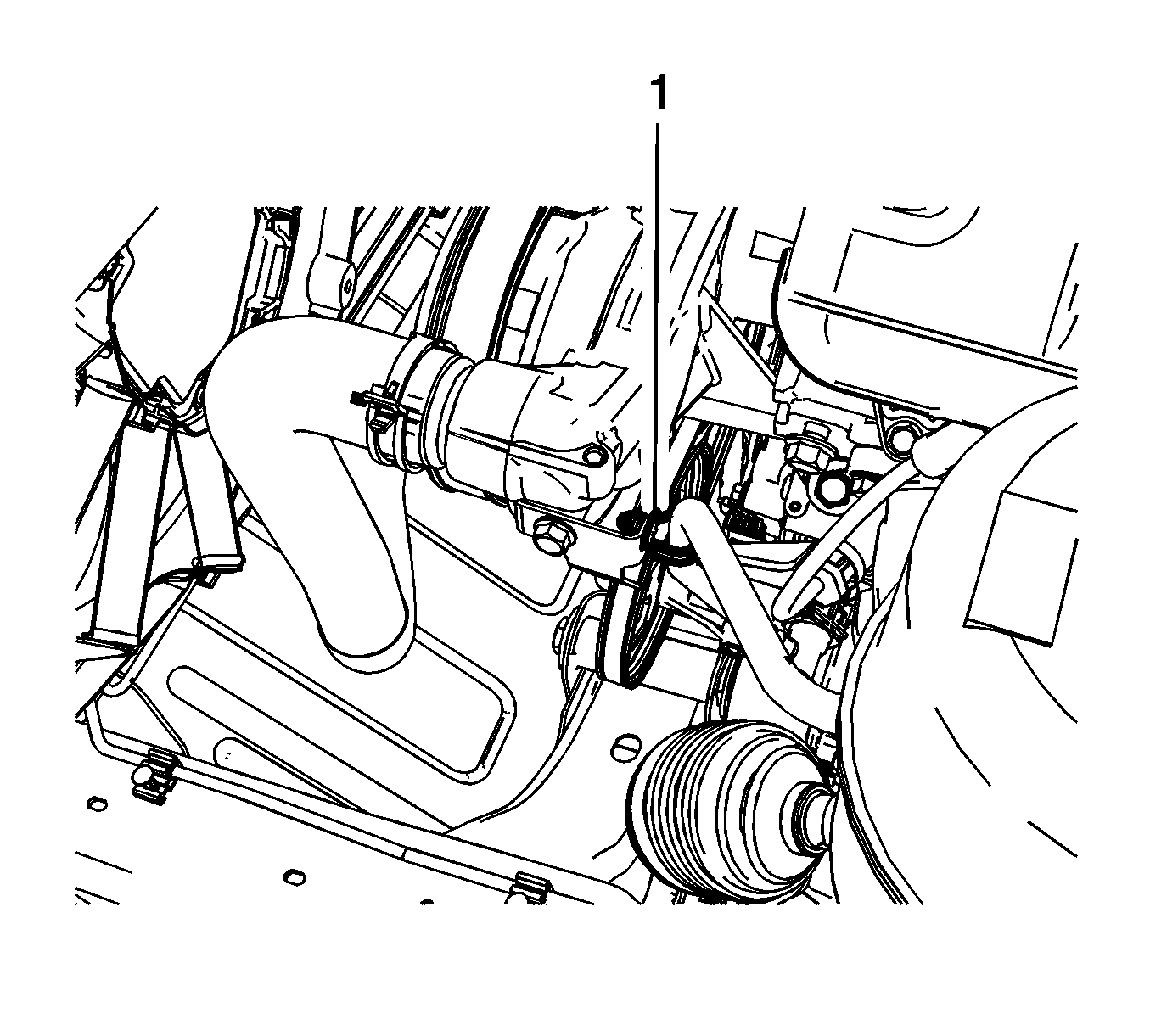

    3. Fig 2: Power Brake Booster Vacuum Pipe Clip
    GM3269843Courtesy of GENERAL MOTORS COMPANY
  3. Install the power brake booster vacuum pipe clip (1) to the harness bracket.

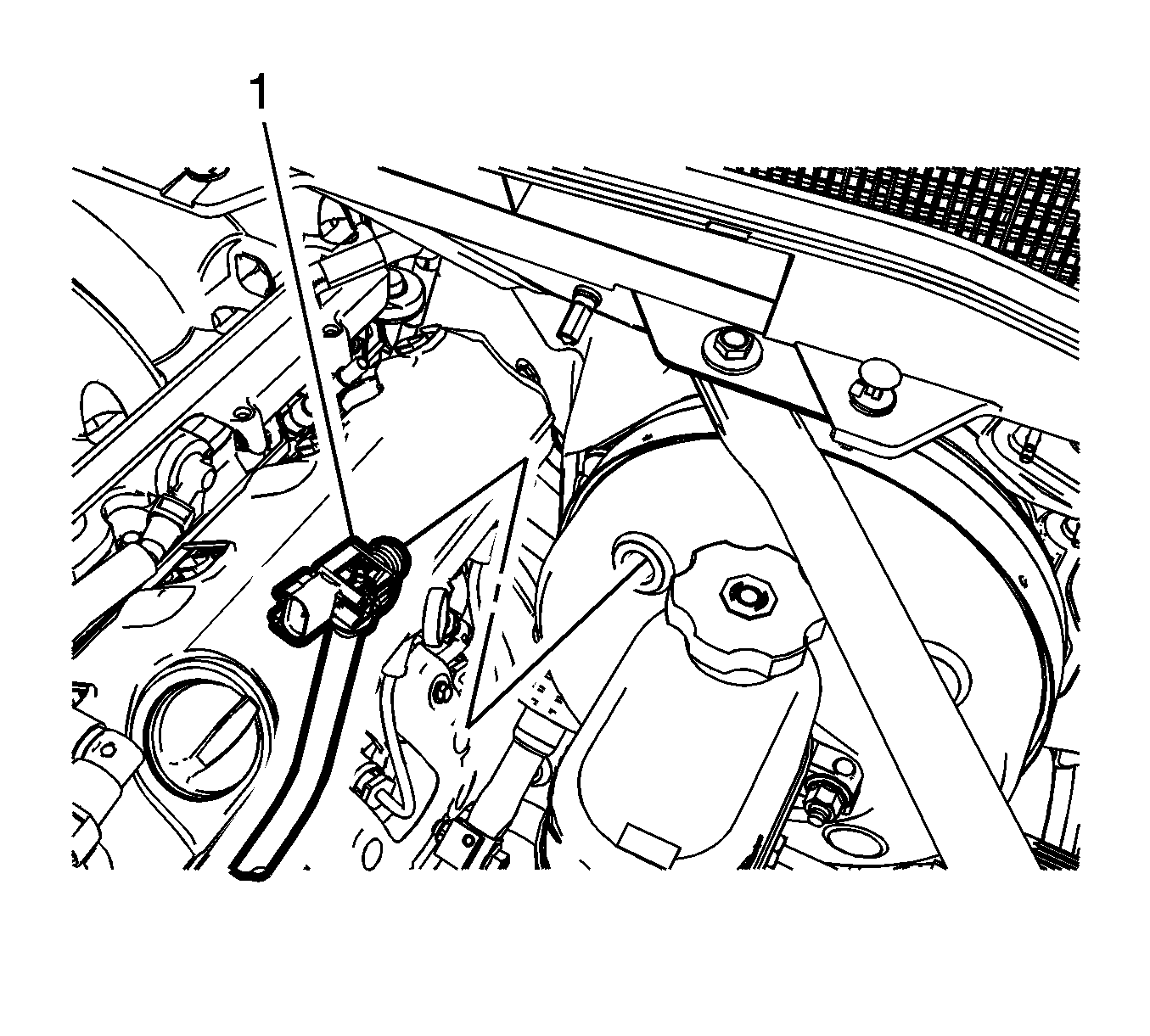

    4. Fig 3: Power Brake Booster Vacuum Sensor And Pipe Assembly
    GM3269840Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If necessary, a small amount of denatured alcohol may be used as a lubricant for assembly. Do not use soap.

  4. Install the power brake booster vacuum sensor (1) and pipe assembly to the power vacuum brake booster.
  5. Connect the power brake booster vacuum sensor electrical connector.
